US$5,700.00-60,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Model NO.
NCMF NCBF NCSF NCGK
Usage
Sheet, Steel Coil, Steel Strip, Steel Strap
Automatic Grade
Automatic
Principle
Small Deformation
Certification
ISO9001, SGS
Easy to Operate
Parameters Can Be Set up in PLC Touch Screen
Equipped Machine
Stamp Press, Roll Forming Machine, Shear Machine
Thickness Range
1.5-8.0mm
Application Material
Ss, SPHC, SPCC, Gi and So on
Industry
Automotive Parts, Electronics,Home Appliance
Coil Outer Diameter
1400mm
Coil Inner Diameter
450-530mm
Transport Package
Standard Overseas Packaging
Specification
Automatic Equipment
Production Capacity
30 Sets Per Month Uncoiler Straightener Machi
Packaging & Delivery
Package Size
450.00cm * 130.00cm * 350.00cm
Package Gross Weight
3000.000kg
Product Description
Product Description

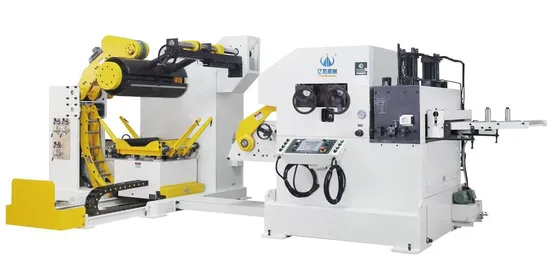

Features of Uncoiled, Straighter and Feeder 3 in 1
1. Suitable all kinds of metal sheet straightening and feeding
2.Suitable for metal parts,electron,electrical appliance, toy and auto parts continuous pressing production,straightening and feeding.
3. Servo motor of this machine,electrical box and ome other parts are from Japan, with less malfunction and long using time.
4. Chrome plate,high precision,more durable.
5. Input feeding length, easy operation, safe and high stability.
Straightening capacity diagram
1.This diagram is suitable for condition,which material stretch intensity is 40kgf/ mm.
2. Straightening capacity may be change because of different actual condition.
3. About coil outer diameter,material widthand deciliter standard load weight,pleaserefer to deciliter attachment diagram ofthis catalogue.
4. About particular specification manufacturing, please contact us.
Specification
| | Model | NCMF-300 | NCMF-400 | NCMF-500 | NCMF-600 |
| Ltem | |
| Material thickness | | 0.4-2.5(Straighteningrollerl49x5up/5down) |
| Material width | mm | 300 | 400 | 500 | 600 |
| Coil Inner diameter | mm | ф450~Ф530 | ф450~Ф530 | ф450~Ф530 | ф450~Ф530 |
| Coilouter diameter | mm | Ф1400 | Ф1400 | Ф1400 | Ф1400 |
| Coil weight | kg | 3000 | 3000 | 5000 | 5000 |
| Decoiler power | HP | 2.2 | 2.2 | 3.7 | 3.7 |
| Straightening power | kw | 2 | 2 | 3.5 | 3.5 |
| Expansion style | | Hydraulic expansion | Hydraulic expansion | Hydraulic expansion | Hydraulic expansion |
| Size | m | 4.5x1.5x2.3 | 4.5x1.7x2.3 | 4.5x1.9x2.3 | 4.5x2.0x2.3 |
| Weight | kg | ~2200 | ~2400 | ~2800 | ~3000 |
| | Model | NCGK-500 | NCGK-800 | NCGK-1000 | NCGK-1300 |
| Ltem | | | | | |
| Material thickness | | 1.5-8.0(Straighteningrollerl84x5up/5down) |
| Material width | mm | 500 | 800 | 1000 | 1300 |
| Coil Inner diameter | mm | ф450~Ф530 | ф450~Ф530 | ф450~Ф530 | ф450~Ф530 |
| Coilouter diameter | mm | Ф1400 | Ф1400 | Ф1400 | Ф1400 |
| Coil weight | kg | 5000 | 5000 | 7000 | 7000 |
| Decoiler power | HP | 2.2 | 2.2 | 3.7 | 3.7 |
| Straightening power | kw | 5.5 | 5.5 | 7.5 | 11 |
| Expansion style | | Hydraulic expansion | Hydraulic expansion | Hydraulic expansion | Hydraulic expansion |
| Item | Model | NCBF-400 | NCBF-500 | NCBF-600 | NCBF-700 | NCBF-800 | NCBF-1000 |
| Material thickness | | 0.5-6.0(Straighteningrollerl68x4up/3down) |
| Material width | mm | 400 | 500 | 600 | 700 | 800 | 1000 |
| Coil Inner diameter | mm | ф450~Ф530 | ф450~Ф530 | ф450~Ф530 | ф450~Ф530 | ф450~Ф530 | ф450~Ф530 |
| Coilouter diameter | mm | Ф1500 | Ф1500 | Ф1500 | Ф1500 | Ф1500 | Ф1500 |
| Coil weight | kg | 2000 | 3000 | 5000 | 5000 | 5000 | 5000 |
| Decoiler power | HP | 2.2 | 2.2 | 3.7 | 3.7 | 5.5 | 5.5 |
| Straightening power | kw | 4.4 | 4.4 | 5.5 | 5.5 | 5.5 | 7.5 |
| Expansion style | | Hydraulic expansion | Hydraulic expansion | Hydraulic expansion | Hydraulic expansion | Hydraulic expansion | Hydraulic expansion |
| Size | m | 4.5x1.9x1.8 | 4.5x2.0x1.8 | 4.5x2.1x1.8 | 4.5x2.3x1.8 | 4.5x2.5x1.8 | 4.5x2.8x1.8 |
| Weight | kg | ~3200 | ~3900 | ~4800 | ~5100 | ~5600 | ~6200 |
