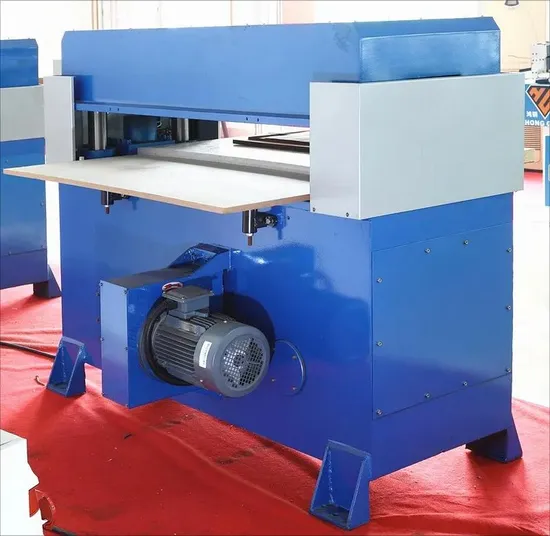

Precise Hydraulic Four Column Plane Manual Fabric/Sponge/Rubber Die Cutting Machine

Product Description

Product Description 100T Automatic Feeding Precision Hydraulic Four-Column Plane Cutting Machine
Detailed Photos

Model	XCLP3-60
Maximum cutting force	60Tons
Distance from upper pressing board to worktable	50-200mm
Cutting area	1600×900mm
	1400×900mm
Main motor power	7.5KW
Electric Supply Voltage	3x440/415/400/380/220/200V, 50/60 Hz
Machine weight (approximate)	5500Kg
	5000Kg
Application	leather processing, garment, shoe making, bag making, packaging, toys, stationery,auto inner decoration, and emulation flower industry

Company Profile
Our Advantages
Factory
Packaging & Shipping
FAQ
Usage and features
1. 4-column type, double-cylinder driving units precision double-linkage automatic balancing structure are designed to get larger cutting force and completely the same depths between each cutting site.
2. PC ECI controls the cutting sites for excellent sensitivity and high cutting precision. Meanwhile the die and cutting board can have longer service life.
3. Special stroke setting device make the stroke adjustment simple and accuracy.
4. Automatic lubricating system guarantees the accuracy and service life of the machine
5. Energy storage of flywheel realizes the instantaneous cutting action

Main technical parameters 1. Cutting force 400KN 2. Stroke range 50-190mm 3. Cutting speed 0.10m/s 4. Motor power 2.2KW 5. Effective working size of the up press plate 1600*600mm 6. Effective working size of the working table 1600*630mm 7. Weight 1850kg

Contact me for more details or video !

---
