100W DVB-T/T2 UHF Transmitter

Product Description

100W DVB-T/T2 UHF TRANSMITTER
Product Description

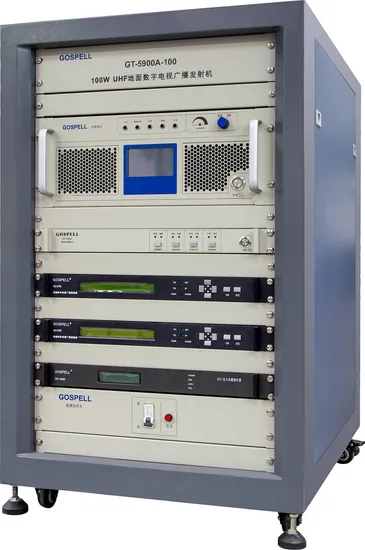

UHF Outdoor Terrestrial DTV Transmitter
GOSPELL's GT-5900-100 UHF Terrestrial DTV Transmitter whose working frequency range is 470-860MHz(in any 200Mhz optional) with high performance, high stability and high reliability of GOSPELL branded product series.
This equipment is with small size and simplified architecture but has advance designs with the advantage of lower noise, higher efficiency and outstanding anti-interference performance; Meanwhile, it supports DVB-T/T2,ISDB-T,ATSC-T standard and other various modulation modes, thus it has great flexibility and suitability in actual implementation.
Main Features 470~860MHz (in any 200Mhz optional) Support multiple modulation standards, including DVB- T/T2, ATSC-T and ISDB-T Module design ,easy for installation, maintenance and upgrade. 1 + 1 backup Use effective LDMOS power-amplifier and linear circuit design to reduce the power consumption Support ALC and AGC power control mode (optional) to ensure stability of output power Use variety of protection mechanism such as over-excitation, over-current, over-heat, standing wave protections to greatly enhance the stability of equipment Perfect delay technology avoids the damage of the burst signal Support local and remote monitoring/detection. Support Web Management and GPRS remote monitoring(optional) Block Schematic Diagram of Equipments
Product Parameters
Technical Specification

General Specifications	Volume(W*L*D)	485*694*305mm(4U 19inch)
	Weight	43KG
	Operating Temperature	0~45°C
	Storage Temperature	-25~85ºC
	Operating Humidity	10%~90% non-condensing
Power supply	Power Voltage Input	AC 220V±10% 50Hz
Connector	RF Input	N-50K
	RF Output	N-50K
	RF Monitoring Output	SMA-50K
	TS data input	BNC-75K (Exciter)
	10MHz data input	BNC-50K (Exciter)
	1PPS data input	BNC-50K(Exciter)
Heat Dissipation		Forced and natural air cooling
AGC Power Control Range		±8 dB
Input Signal Level		85dBuv±8 dB
Modulation Standard		DVB-T/T2 ,ISDB-T,ATSC-T

Company Profile
Company Profiles

Welcome to Gospell Digital Technology Co., Ltd
The brands GOSPELL(DTV), XIPOINT(Satellite TV), GONTCERA(GONTCERA Ceramics) have strong brand advantages over others and this company possesses a highly competitive sales and marketing network in the relevant fields.
FAQ
Q1: How to get a sample?
A: Sample order is acceptable. After price confirmation, you can require for samples to check our quality. If you need samples, we will charge for the sample and freight cost. The sample fee will be refunded if you place order.
Q2: What about the lead time?
A: In general, the lead time is about 25 to 35 days. But please confirm the exact delivery time with us as different products and different quantity will have different lead time.
Q3: How about the packing and shipping?
A3: Normally, we have carton for packing. If you have any other special requirements, please feel free to contact with us.
Q4: How about the OEM/ODM services?
A4 : We provide all kinds of OEM/ODM services ,
For example: Logo print on casing ,Customized packing, Software Customization. Please contact us to check the detail things before placing order.
Q5: How about the payment terms?
A5: We accept 30%T/T in advance, the 70% T/T balance before the delivery.
L/C, Money Gram and Western Union are also available.
Q6: How about warranty and procedure?
A6: Warranty time is 12 months. If you have any problem, please contact us in time, we will help you to resolve
the problem.

---
