Graphite Blank Rod Material for Graphite CNC Processing Graphite Mold

Product Description

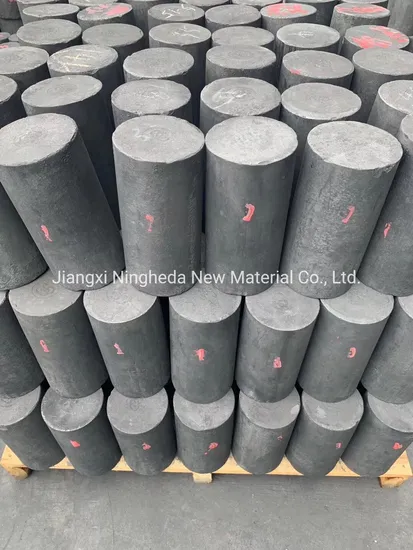

Graphite blank rod Material for Graphite CNC Processing graphite mold
graphite rod and block produced by cold molding are widely used in machinery, electronics, semiconductors, polycrystalline silicon, monocrystalline silicon, metallurgy, chemical, textile, electric furnaces, space technology and biological and chemical industries. The graphite has the following characteristics: Good electric conductivity and high thermal conductivity Low thermal expansion and high resistance to thermal shock. The strength increases at high temperature, and it can withstand over 3000 degrees. Stable chemical property and hard to react Self lubrication Easy to process Technical Index

Type	MSL80	MSS80	MSL85	MSS85
Grain Size (μm)	25	25	25	25
Bulk Density (≥g/cm3)	1.8	1.8	1.85	1.85
Compressive Strength (≥MPa)	60	60	70	70
Flexural Strength(≥MPa)	30	30	35	35
Porosity(≤%)	21	21	18	18
Specific Resistance(≤μΩm)	12	12	12	12
Ash Content(≤%)	0.08	0.08	0.08	0.08
Shore Hardness	48	48	50	50

The ash content can be purified to 30ppm according to the requirement. The above index data is the standard value, not the guaranteed value.

Size	Size	Size	Size	Size
(mm)	(mm)	(mm)	(mm)	(mm)
φ100×250	φ210×250	400×200×100	410×250×160	510×310×200
φ120×250	φ250×250	280×280×110	450×200×150	450×450×300
φ130×250	φ300×250	320×260×120	410×310×180	600×500×200
φ135×250	φ200×400	320×320×150	410×310×200	600×500×300
φ150×250	φ300×400	320×320×190	410×310×240	800×400×200
φ170×250	φ400×400	330×330×170	510×310×150	920×340×340
φ180×250		380×350×200	510×310×180	500×400×200

Other sizes can be produced according to customer requirements.
