Basic Info.
Application
Cotton, Rice, Corn, Fruit, Wheat, Soybean, Tubers, Straw
Harvest method
Vibration fall
Portable Harvester Type
Backpack Type
Certification
QS, GMP, ISO9001:2008, CE
Application Field
Agriculture, Livestock, Aquaculture, Forestry
Dimension(L*W*H)
5750*2440*3040
Working Width(mm)
2440 mm
Warranty of Core Components
1 Year
Key Selling Points
High Productivity
Tractor Power(HP)
50 - 120 HP
Rated Rotation Speed
2600r/Min
Machinery Test Report
Provided
Machine Type
Combine Harvester
Engine Model
4D35r41s1106
Video Outgoing-Inspection
Provided
Marketing Type
New Product 2020
Transport Package
Container Shipment
Specification
5750*2440*3040mm
Packaging & Delivery
Package Size
2220.00cm * 1580.00cm * 2080.00cm
Package Gross Weight
3000.000kg
Product Description
Product parameters
Model
|

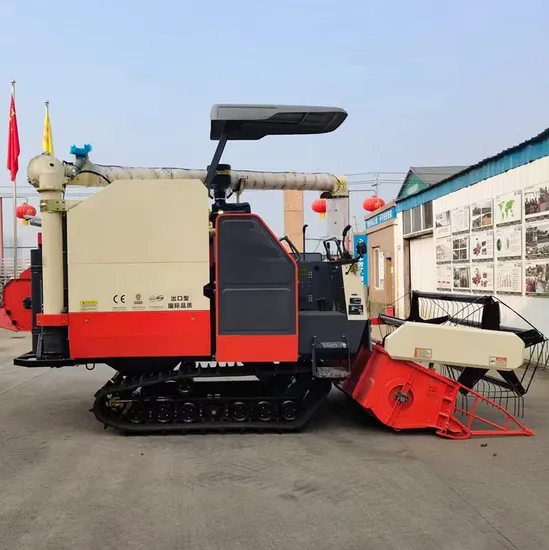

| 4LZ-50.ZG Combine Harvester
|
Overall Dimension Length×Width×Heights(mm):
|
| 5750×2440×3040
|
Weight (kg)
|
| 3420
|
Engine
| Engine Model
| 4D35R41S1106
|
| Rated Power(kw/hp)
| 81.5KW
|
| Engine Type
| Water-Cooled,4-Cylinder,Dl-Injection,Vertical Turbocharged Diesel
|
| Rated Rotation Speed (r/min)
| 2600
|
Traveling System
| Type of Gearbox:
| Hydraulic type +HST(3F,3R)
|
| Rubber Track(mm)
| 500×90×54
|
| Gauge
| 1250
|
| Minimum Ground Clearance (mm)
| 320
|
Cutting header
| Height Adjustment
| Hydaulics.
|
| Cutting Width(mm)
| 2100
|
| Header auger type
| Telescopic Screw Conveying
|
*Please contact us if you need more detailed parameters.
1.Using small spike-tooth structure shear flow, rice harvesting effect;
2.Using the longitudinal axial flow narrative structure, the story effect is better;
3.Adopting the miscellaneous return structure, the structure is reduced, and the cleaning effect is better!
4.Better results in wheat, soybeans, corn, etc.
5.The header adopts a quick hook structure, which is convenient, light and reliable;
6.The use of extended grain unloading drum makes it easy to unload grain;
7.The roller chopper mechanism is adopted, which can better meet the agronomic
requirements
8.Use left and right energy tanks (236 liters) to effectively reduce the frequency of refueling.
Certifications
Our Factory
Founded in 2003, TDER Group is an international large-scale machinery manufacturing company, engaged in the invention and sales of various machinery products, including forklifts, loaders, warehouse equipment and port equipment. The TDER Group has established 3 factories. All 25 categories of products have passed the SGC, TUV, BV, INTERTEK and other authoritative international institutions certification. Today, our products have been exported to Brazil, Russia, Australia, Canada, Turkey and other 158 countries and regions, with 56 agents.
Customer feedback
You can send an email or message to explain your needs, and we will recommend a suitable machine for you according to the model and configuration requirements provided.
