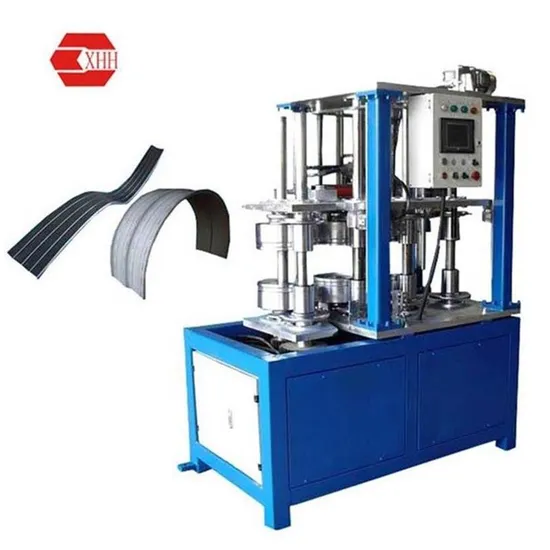

Yx65-300-600 Steel Roof Curving Machine with Concave and Convex Curved

Product Description

Full Automatic Adjustment Curving machine With Convex Curved & Concave Curved,Automatic Adjustment Standing Seam Roof Curving Machine
Main Technic Data:
Curving Standing Seam Roof Panels to Convex Curved and Concave Curved, S-shaped and Wave-shape;

1.	Size	1500*850*2000mm
2.	Weight	1500KGS
3.	Motor Power	4KW
4.	Motor Power for Adjusting Models	0.75KW
5.	Forming Steps	4 Steps
6.	Curved Thickness for Aluminum	0.6-1.0mm
7.	Curved Thickness for Steel	0.6-0.8mm
8.	Working Speed	10-16m/min
9.	Curved Radius for Aluminum	Convex Curved 2m,Concave Curved 6m
10.	Curved Radius for Steel	Convex Curved 4m,Concave Curved 8m

Q&A
Q:Are you a trading company or manufacture ?
A:We are a factory.
Q:Do you provide samples ? Is it free or extra ?
A:Yes, we welcome sample order to test and check quality. Mixed samples are acceptable. We could offer the sample for free charge.
Q:Where is your factory located?
A:Our factory is located in Xiamen City, Fujian Province, China. You are warmly welcome to visit us !
Q:Can you make the machine according to my design or prototype?
A:Yes. We have an professional designer for working out the most suitable design and production plan for the machine that you are going to book with us.
Q:How can I trust you that machines pasted testing running before shipping?
A:1) We record the testing video for your reference.
2) You are welcome to visit us and test machine in our factory.
Q:Do you provide installing and training overseas?
A:Overseas machine install and worker training services are optional.
Q:How is your after sales support?
A:We provide technical support on line as well as overseas services by skillful technicians.
Guarantee period:
Within one year since the date of finishing commissioning

---
