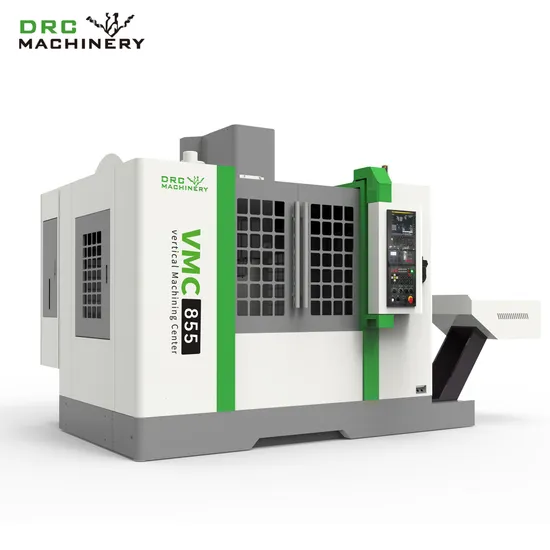

High Precision Machine Vmc Center Vmc855 CNC Milling Machine Price

Product Description

4 axis 5 axis metal cnc milling machine for metal
VMC Machine Center Features: High quality resin sand Taiwan spindle Taiwan ball screw and locking nut Taiwan pressure cylinder Taiwan linear railway Japanese NSK bearing germany R+W coupling Automatic lubrication system Chip conveyor at optional
Machine Center Application: This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.
Taiwan Hiwin Guide Rail Cnc Machining Center Vmc850 Vmc855 Cnc Milling Machine Center
CNC vertical machine center vmc cnc milling machining center with high quality for metal work DRC machining center is suitable for processing machinery and mold manufacturing field of vertical machining center, from the rough machining and finish machining and processing requirements apply, can finish milling, drilling, tapping, boring, and a variety of processes.
Cnc Milling Machine Center Features: 1. The CNC Machine Tool Body Has Undergone a Complete Casting Process To Ensure The Quality Of The Product 2. Taiwan Spindle (Speed, Brand, Can Be Matched According To Customer Requirements) Vertical machining center fearturs : 1.High quality resin sand 2. Japanese NSK bearing 3. Twaiwan spindle 4. Germany R+W coupling 5. Taiwan ball screw and locking nut 6. Automatic lubrication system 7. Taiwan pressure cylinder 8. Chip conveyor at optional

Model	vmc600	VMC855	VMC1055
Travel parameters of 3 axis
X /Y/Zaxis travel	900/350/500mm	800/550/550mm	1000/500/500mm
Spindle face to table distance	100-600mm	120-670mm	120-670mm
Distance between spindle center and column guide surface	460mm	613mm	613mm
Worktable parameters
Worktable size	1250×360 mm	1000×550mm	1000×550mm
Maximum load bearing of worktable	400kg	600kg	600kg
T Shot	3×18×80mm	5×18×85mm	5×18×85mm
Feeding parameters
X/Y/Z axis rapid movement rate	10/10/10 m/min	48/48/48m/min	48/48/48m/min
Feed moving velocity X, Y, Z	1-6m/min	1-12m/min	1-12m/min
Spindle parameters
Main shaft connection	Belt	Belt	Belt
Spindle taper	BT40-120	BT40-140/150	BT40-150
Range of spindle speed	8000rpm	8000rpm	8000rpm
Spindle motor power	5.5kW(Alternating current servo)	11kW(Alternating current servo)	11kW(Alternating current servo)
ATC paremeters
ATC capacity	16qty	24qty	24qty
Maximum tool size	Φ92mm(tool from a distance)	Φ120mm(tool from a distance)	Φ92mm(tool from a distance)
Maximum tool weight	5kg	8kg	8kg
Precision
PositionaI accuracy(JIS standard)	±0.008/300mm	±0.008/300mm	±0.008/300mm
Repeated positioning accuracy(JIS standard)	±0.005mm	±0.005mm	±0.005mm
Shape and weight
Machine size	3300×2280×2550 mm	2800×2360×2450mm	2800×2360×2450mm
Weight	3800 kg	5300kg	5300kg

---
