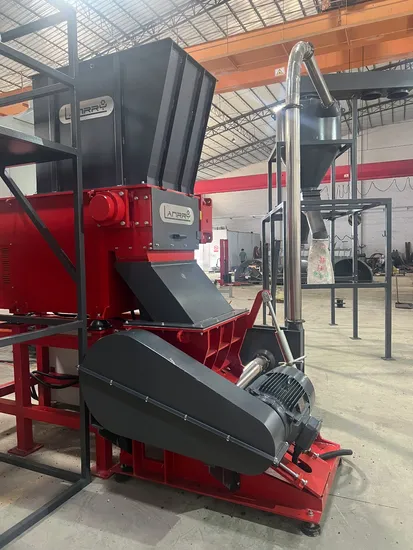

Plastic Shredder and Crusher Two in One Machine

US$10,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
1000kg/h
Material Processed
Plastic/Shredder
Plastic Type
Plastic/Shredder
Screw
Multi-Screw
Automation
Automation
Computerized
Computerized
Certification
ISO9001:2008, CE
Gear Box Cooling
by Water
Hydraulic Cooling
by Air
Safety Design
Safety Design
Transport Package
Film with Wooden Pallet
Specification
Customized
Trademark
Lanrry
Origin
Guangzhou

Product Description

Product Description
The two in one shredder is a type of shredding equipment with a compact design. It is easy maintenance and it eliminates the need for a conveyor between the shredder and granulator.
1. The shredding and crushing functions are combined on a single machine, particle material sizes may be discharged and reused directly, saving time.
2. The shredder and granulator storage systems are merged into a single unit, saving space and cost.
3.Main shaft is driven by gear reducer.
4.The hydraulic feeding mechanism is powered by an independent power unit with a sturdy frame structure.
5.Hydraulic system with fan cooling design.
6.Electrical cabinet with Siemens PLC control system. Co-rotation and reversal auto protection are controlled automatically under an overload.
7.The whole system meets the CE safety standard.
Product Parameters
Specification
Shredding Part Crushing Part
Motor Power(kw)
18.5+2.2
22
Rotor Diameter(mm)
220
320
Rotor Speed(rpm)
80
520
Screen Size(mm)
40
12
Capacity 500-800kg/h

Detailed Photos

Certifications
