Blue Epoxy Coated Mechanical Dresser Coupling Gibault Joint for PVC Pipe

Product Details

Product Description

Product Description
Product Description

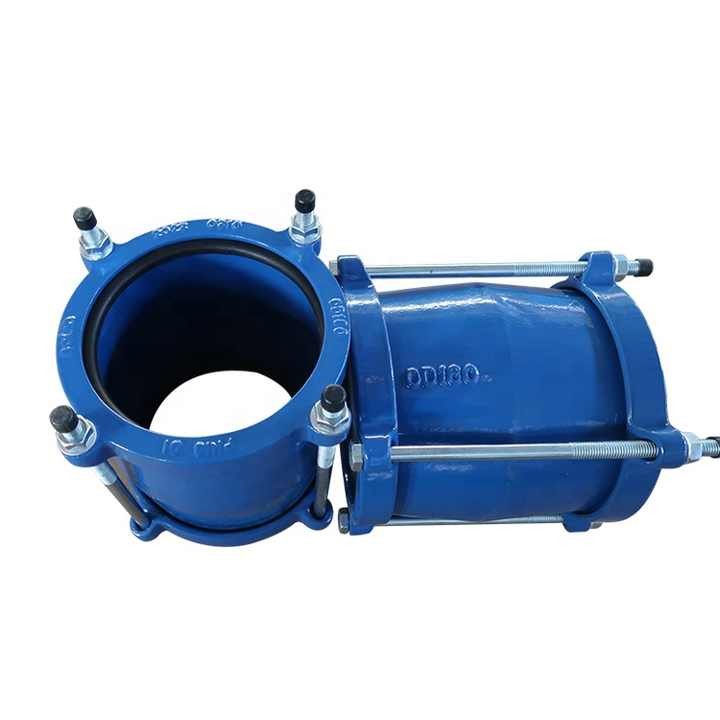

Gibault joints
This joints are a coupling designed to provide an efficient and economical mechanical joint for white PVC and AC sized pipes.
The Standard Gibault joint is designed to join/repair pipeline materials and fittings that are relatively inert, ie. Ductile Iron, Cast Grey Iron, Asbestos Cement. The sleeve length of the Standard Gibault joint sleeve is relative to the material it has been designed to join. When joining/repairing pipelines of different material it is strongly recommended that an Elongated or SWB Gibault joint be utilised.
Feautures:
Ductile iron with FBE coated.
PN10, PN16 Working pressure.
Equipped with galvanized steel bolts ,nuts
Otype EPDM or NBR rubber seals
Size :63-315MM

Dimensions(mm)
Item No.	Size	Bolt		A	H
		L	QTY	mm	mm
1	63	160	2	125	147
2	75	160	2	125	147
3	90	160	3	125	165
4	110	180	3	145	185
5	125	180	3	145	200
6	140	180	4	145	215
7	160	220	4	185	236
8	180	220	4	185	255
9	200	220	4	185	276
10	225	230	6	185	285
11	250	230	6	185	340
12	280	230	6	185	345
13	315	230	6	185	352

Detailed Images

---
