Solid Silicone Rubber Injection Molding Machine for Sealing Nipple Gasket

Product Description

Solid Silicone Rubber Injection Molding Machine for Sealing Nipple Gasket
Application:

Silicone Rubber Injection Moulding machine is suitable for making all kinds of rubber and silicone products, such as rubber gasket, sealing, silicone rubber nipple etc. It is mostly suitable for high quality requirements, complex shape, thick wall and these products with embedded parts.

Features:
Silicone Rubber Injection Moulding machine mainly consists of heating plate , oil cylinder , piston , automatic PLC cabinet , automatic pull and push mold and out in device , automatic ejection device .
It can not only automatic inject the rubber into the mold and automatically mold closing and opening , but can also push and pull the mold automatically , meanwhile it can also knock the mold out for easy working.
1. Injecting rubber after the mould being block, high moulding pressure in inner cavity of the mold, high density construction of products.
2. High speed open and close molds, high production efficiency, low blocking speed, protect mold.
3. Automatic in and out mold and ejector device, low labor strength.
4. Optional normal valve or proportional valve,matching-advanced oil way,reduce energy consumption.
5. The electric system adopt PLC programming control,which is easy to be operated.

Technical Parameters:

Technical parameter	item	63Ton	100Ton	200Ton
	clamping force	63Ton	100Ton	200Ton
	system pressure	21mpa	21mpa	21mpa
	clamping stroke	300mm	300mm	300mm
	Max. opening	350mm	400mm	480mm
	fast raise speed	≥70mm/s	≥70mm/s	≥70mm/s
	heater platen	360*400mm	450*450/500*500mm	600*600mm
	max temp	2500C	2500C	2500C
	motor power	4kw	4+2.2kw	5.5+3kw
	oil tank capacity	100L	170L	200L
	Overall dimension	1600*1200*2500mm	1550*1800*2700mm	1800*2100*3000mm
	weight	2500kg	3000kg	5000kg
	Shot capacity	660ml	900~1000ml	1500ml

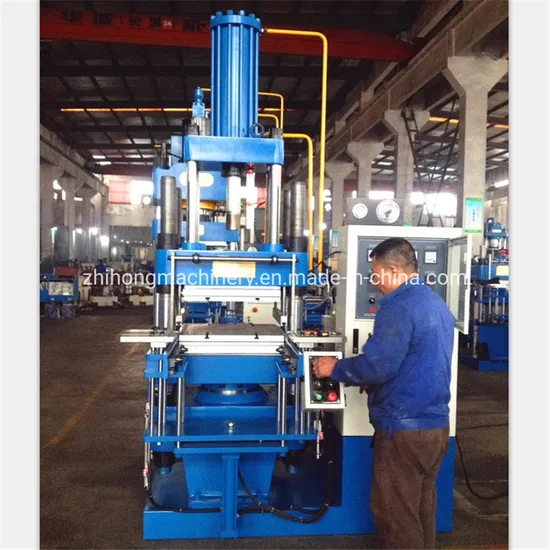

Product pictures:

FAQ:
1 Are you manufacturer or trading company?
We are manufacturer and we have exported the rubber machines more than 10 years.
2 Can you design new machinery for us?
Yes,we have a professional technology engineers that we can make new machinery according to your requirements.
3 What's your payment term?
30% deposit by T/T,the balance paid off by T/T against shipping documents.
Or L/C at sight.
4 Warranty:
Our warranty time is 13 months, during guarantee period, the cost of any spare parts or new accessory should be borne by the seller;Beyond the warranty period we only charged for the cost of spare part.
5 Are you near to Qingdao airport?
Yes,only 1.5 hours to our factory.
6 Do you have any certificate of your products?
Yes, we have CE, SGS, ISO etc.
Our contact:
If you are interested in our Silicone Rubber Injection Moulding machine, please send us inquires and we will provide detailed information to you. We can also make machines according to your request.
Qingdao Zhihongda Machinery Co.,Ltd located in Qingdao City.You can fly to Qingdao Liuting airport,then we can pick you up to our facotry to visit.Warm welcome to visit us.
