Good Reputation Reliable High Response New Style Servo Energy-Saving Plastic Injection Molding Machine Hxm658-I

US$19,000.00-93,016.00 1 Piece (MOQ)

Basic Info.

Model NO.
HXM658-I
Type
Plastic Injection Molding Machine
Structure
Horizontal
Plastic Type
PS, ABS, PP, PE, HDPE, PA, EVA
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Energy Saving
Servo Energy Saving
After Sakes Servuce
Engineers Available to Service Machine
Voltage
380V/50Hz, According to Countries
Showroom Locate
Malaysia, Russia, Turkey, Uzbekistan
Condition
New
Injection Weight
1920 G PS
Space Between Tie Bar
970*920
Machine Weight
30 Ton
Moving Mould-Plate Stroke
970 mm
Transport Package
Standard Package
Specification
9.37*2.19*2.48
Trademark
Highsun
Origin
China
HS Code
8477101090
Production Capacity
7000 Sets / Year

Product Description

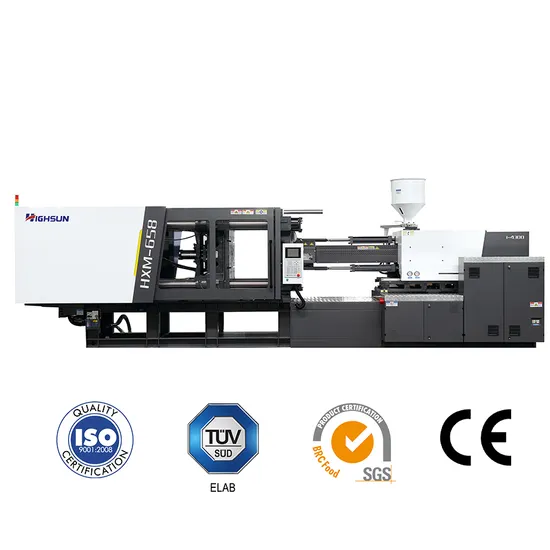

1.Picture
MODEL:HXM658-I
TECHNICAL PARAMETER TABLE A B
INJECTION UNIT SCREW DIAMETER mm 75 80
SCREW L/D RATIO L/D 22 21
INJECTION CAPACITY IN THEORY150130112882 cm3 1855 2110
INJECTION WEIGHT(PS) g 1688 1920
oz 59.5 67.7
INJECTION PRESSURE MPa 234 206
INJECTION RATE g/s 429 488
PLASTICIZING CAPACITY g/s 55 65
SCREW SPEED rpm 150
CLAMPING UNIT CLAMPING FORCE KN 6580
MOVING MOULD-PLATE STROKE mm 970
MAX. MOULD HEIGHT mm 950
MIN. MOULD HEIGHT mm 350
SPACE BWTWEEN TIE-BARS (W×H) mm 970*920
HYDRAULIC EJECTOR FORCE kN 227
HYDRAULIC EJECTOR STROKE mm 260
EJECTOR NUMBER n 17
OTHERS PUMP PRESSURE MPa 17.5
MOTOR /DRIVING POWER KW 30+38
HEATING CAPACITY KW 28.85
MACHINE DIMENSION (L×W×H) m 9.37*2.19*2.48
MACHINE WEIGHT t 30
OIL TANK CAPACITY L 1156

Product Advantages:
a. Super energy saving
Output power varies with the load, and no energy is wasted. In the holding pressure phase, the servo motor will reduce speed, with low energy consumption; during the cool-down period, the motor does not work, with zero power consumption. Compared with the ordinary injection molding machines, it can save 20%-80% of the power.
b. Hiigh precision and high stability
Equipped with the precise pressure sensor and rotary encoder, it can respectively monitor and feed back on flow and pressure. Based on the feedback, the high performance synchronous servo motor will adjust flow and pressure accordingly by changing the speed and torque. The closed-loop control can ensure the stability of product quality.
c. High response and high efficiency
The driving system responses with high sensitivity . It takes only 0.05 seconds to reach maximum value. The response speed is much faster than the ordinary injection molding machines. In that way, it significantly shortens the cycle time and increases the production efficiency.
2.Application
3.Processing,assembling production line
5.Loading containers
6. Customer case
Client in China produce shoe for several famous companies
7.Client in Malaysia
