39mm Diameter 5MP HD 360 Pan Tilt Sewer Drain Pipe Inspection Camera 60m Push Rod Cable

Product Description

39mm Diameter 5MP HD 360 Pan Tilt Sewer Drain Pipe Inspection Camera 60m Push rod cable 316 stainless steel housing 30m -60m Pushrod cable Sewer Drain Borescope Sewer Endoscope Video CCTV Locator Pipe Inspection Camera With 10.1 inch monitor
Model : PD160-360
Product Description
Description of pipe sewer camera system
The Push-rod Drain camera is for inspecting 30 mm to 250 mm [1 in to 10 in] lines and comes with a 30 m [98 ft] push cable.Max 60m [196 ft] The push cable is reinforced with fiberglass and flexible enough to travel through sharp 90° bends, yet stiff enough to push it long distances.
The camera includes a built-in 512hz transmitter that helps locate points inside the underground pipelines . And self-leveling camera head to keep the image always upright.
The HDR image sensor expands the camera's dynamic range, allowing to view more clear when in dark or bright pipes, e.g. stainless steel pipes.
The monitor supports 4K videos and 12 MP photos. It controls photo marking, meter counting,[m/ft switch] recording, photo taking, zooming, and 360 ° rotation of the camera through screen touch and body buttons. It is Wi-Fi enabled monitor to deliver professional multimedia reports to your customers mobile quickly and easily via App.

The product can be paired with multiple cameras (360 ° PT camera, 28mm and 23mm camera, all of the cameras are IP68 waterproof.)


Usage of the pipeline drain inspection camera :
1. Tubular/Water Pipe Cleaning: helps to clean, rust, corrosion, dust and crack after the pipe is inspected.
2.Shipbuilding industry: used to inspect boilers, steam turbines, diesel engines, pipelines.
3.Industrial machinery: used to check for engine scars or wear, gearboxes, hydraulic systems, greatly reducing downtime.
4. Electronics, electronics industry: used to confirm the wiring status of the product, check the working condition of the machine, etc


2MP 28MM camera self-level+Meter counter + 30M push cable+ professional cable reel + 10inch 4K monitor

10inch 4K Recording Touch Screen 2MP 28MM Drain Camera Industrial Drain Sewer Pipe Inspection Camera
Main points for pipeline inspection camera

*2MP Sony Sensor Resolution:1920*1080px
*View angle:120°view angle
*Dynamic Range:90db
The high dynamic range (HDR) image sensor expands the camera's dynamic range, allowing a greater ratio of bright
and dark areas to be displayed in the same image at the same time without reducing visibility. The result is superior clarity and detail, allowing you to quickly and easily identify problem areas.
*Light source: 12 LED, brightness is adjustable via monitor
*23mm diameter camera with 2 skids, for 25-200mm diameter pipe
*Cable Reel Material: Stainless steel, with brake
*Cable material:Glass fiber, 30m, Diameter:5.0mm
*Monitor bracket: Removeable from the cable reel
*4colors removeable Rubber Corner protectors
*10.1 inch touch screen resolution:1280*800pix,IP66
Video input:HD 4K,2K,1080P,720P, 480P AHD,CVBS video input
Video Output: HDMI 1080P
Support 4K,2K recording;12MP photo and photo notes.
Support 10 times zoom,image flip,inner keyboard to edit photos, playback, file lock with password
Video compression format:H.265
Max Storage: up to 256GB TF card,default 64GB
Compressed video and audio are synchronous
12400mAh exchangeable and removeable Li-battery
Support 12 Voltage power output for camera
WiFi Wireless transmission and view on mobile,via APP

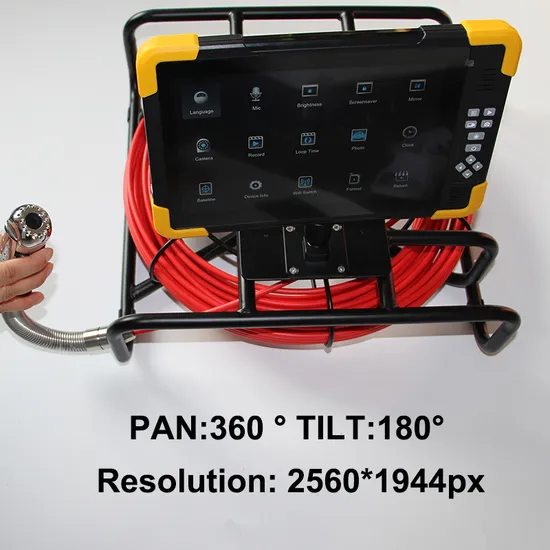

10inch 4K Recording Touch Screen 5mp 39MM 360 pan tilt Drain Camera Industrial Drain Sewer Pipe Inspection Camera
Product Parameters
Specifications for Pipeline inspection system

	360 camera	360 pan, 180 tilt
Camera	Effective resolution	2560*1944px
	Video output format	AHD
	Rotation rate	12r/min
	Camera Dimension	ø39mm*120mm total length with spring: 133mm
	Light source	12 LED
	Camera Housing	316L stainless steel, sapphire glass
	Lens View angle	129.5°
	Light source	12 LEDS
	Brightness of the LEDS	Controllable via monitor
Cable	Length	10--60m(optional)
	Material	Glass fiber cable
	Diameter	4.0-5.0mm (optional)
Cable Reel	Size	L*W*H=42*42*20cm
	Brake	With Brake
Recording Monitor	Display	10.1 inch
	Screen Resolution	1280*800 px
	Touch screen	capacitive touch
	Video recording	2K(4:3): 2560x1944@25 /30fps
		2K(16:9): 2560x1440@25 /30fps
	Video input	AHD
	Video format	MP4
	Photo	12MP,8MP,4MP,2MP (JPG)
	Video Output	HDMI 1080P
	Compression mode	H. 265 video compression
	Audio input/output	1.0Vp-p (20Hz-20KHz)
	Speaker Output	1W
	Camera LED Control	PWN
	File System Support	FAT32
	Memory card	TF card 2GB-256GB
	Language	China, English, South Korea, Russia, German, French, Ukrainianetc
	Voltage	DC :12V USB DC:5V
	WiFi Protocol	802.11 a/b
	WiFi Channel	2.4000-2.4835Ghz
	WiFi power	<16dBm
	Power Supply	DC 12V 2.5A
	Lithium battery capacity	6200mAh
	Maximum charging power	15W
	working hours	6-8 Hours
	Operating temperature	-20ºC to 50ºC
	Waterproof grade	IP65
	Size	L*W*H 30*19*1.8CM
	Weight	870g
Package	Monitor with ABS plastic suitcase	Total size after packing:47*45.5*30cm, G.W:13KG

---
