High Quality Automotive Connector Making Machine Price

Product Description

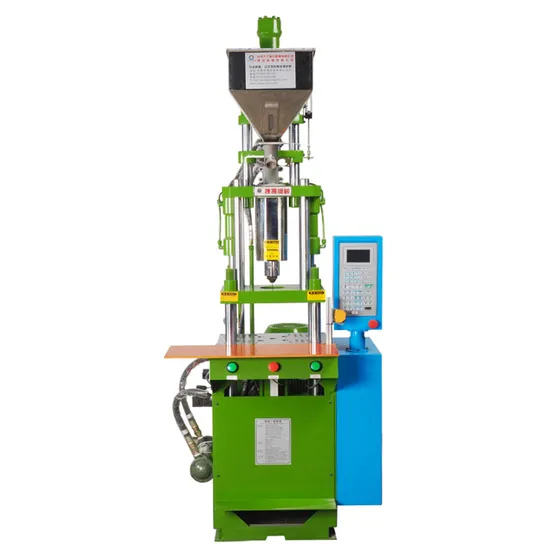

high quality automotive connector making machine price
Features: ♥ Straight screw ejected assembly.
♥Two(three)-phase temperature, ejected speed, backing pressure and screw speed is suitable for
various plastic to confectioned.
♥ Low-die fixed top active mode makes inserted objects excellent positioned features
and the machine has liftout attachment for finished goods.
♥ Low-pressure closed die assembly can protect the safety of die.
♥ Material tube can be lifted. It is easy to clean stub bar. It is easy to fix die.
♥ Can be installed a single mold or double shuttle table.
♥English/Arabic/Spanish LCD and so on about ten language display, which can memorize
999 groups of mold data.
Application
1.Electric parts
2.Coil encapsulation parts
3.Daily products like microwave electriciron shells etc.
4.Auto industry
-Lamp reflector/Large parts of hood ,and rear doors,electric heating box,engine hood,horn box,big lamp shell
and branch electric head etc.
5.Precision parts
Circuit breakers shell without fuses,motor shell ,loudspeaker box,cassette and video parts,copying machine,
faxing machine,printing machine,medical equipment,measuring apparatuses etc.

	MODEL	UNIT	JY-250ST	JY-450ST	JY-550ST
Injection Unit	Screw Diameter	mm	30	34	42
	Injection Pressure	kg/cm2	884	820	960
	Max.Shot Weight(PS)	g	74	106	176
	Injection Rate	mm	115	115	140
Clamping Unit	Clamping Force	Tons	35	45	55
	Platen Size	mm	540*380	580*430	670*480
	Distance Between Tie Bere	mm	375*205	410*250	470*280
	Min.Mold Height	mm	158/58	220/70	270/70
	Opening Stroke	mm	180	200	200
	Enjection Force	Tons	1.3	1.76	1.76
	Enjection Stroke	mm	35	35	35
Power Unit	Max.Hydaulic Pressure	kg/cm2	140	140	140
	Pump Motor Power	KW/HP	3 .75/5HP	5.5/7.5HP	7.5/10HP
	Total Weight	KW	6.3	9	12
Other	Machine Weight	Tons	1.5	2.4	3.0
	Machine Dimensions(LxWxH)	m	1.55x0.93x2.45	1.7x1.2x3.0	1.85x1.2x3.0
	Shipping Weight	Tons	1.8	2.7	3.4
	Shipping Measurements(LxWxH)	m	1.76x1.15x2.3	1.92x1.3x2.3	2.1x1.4x2.3

Company:
Youtube videos: 45Tons Europe Plugs making: https://youtu.be/IRDLWHtWB9w
45Tons South Africa 3 pins plugs: https://youtu.be/JLMHU_XmlqU
Femail 2 pins Plugs: https://youtu.be/s1hXzQqhYmg
15tons USB cable making: https://youtu.be/tgZmnRY2avk
35 Tons manual systerm: https://youtu.be/G0C1b_lk2qQ
35Tons USB making : https://youtu.be/VhoUBRiXt6w
35Tons Security seal lock: https://youtu.be/CHEJshwKrXU
Oxygen tube: https://youtu.be/1y_QEN5CMsg
Silicone rubber machines: https://youtu.be/P6yMnAQYP3g
Double slide machine: https://youtu.be/yBJAaYGzq5g
JY 550C 2M Car accessories: https://youtu.be/JBczO_C1XbY
C-type 2 pins plugs making: https://youtu.be/sHgicvjktNU
FAQ:
Q1: Are you a trading company or a manufactory?
A1: We are the Manufactory specialized in Plastic injection molding machine more than 20 years; we passed CE & ISO9001 & SGS Certificates.

Q2: What's your guarantee or the warranty of the quality if we buy your machines?
A2: We offer you high quality machines with high quality afterservice. Also we have one year warranty of the spareparts, free of charge.
Q3: Why choose Jieyang Machinery Co.,Ltd.?
A3: Our products with more than 30% energy saving. Highest Cost effective environmentally. Excellent pre-sale and after-sale services.

---
