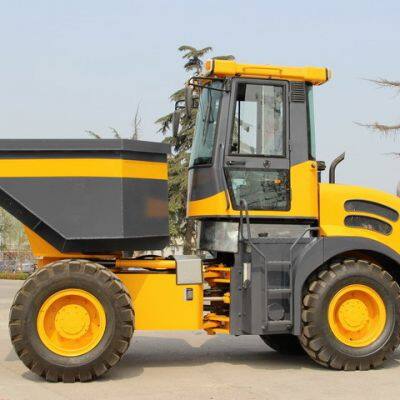

6.0T 4WD Articulated Dumper
Application: A dumper is a vehicle designed for carrying bulk material, often on building sites. Our compact dumpers are designed for any application from conventional building construction and landscaping to tunnel construction and demolition work. This three-way dumper provides an ideal solution as multi-function dumper when considerable manoeuvrability is required. They are ideal vehicles for transport and distribution of materials at building sites and for road works.
Feature:
1. Articulated joint
2. Excellent product quality
3. Durable and easy to service
4. Impressive turning radius for precision and efficiency
5. User-friendliness combined with excellent driver comfort
6. Power Swivel skips enable effective placement of load either side
7. Available with closed cab and heating
Technical Specifications:
Model: DP60 Payload: 6000kg Operating
Weight: 5950kg
Bucket Capacity: 3CBM
Max. Tractive Force: >=55KN
Max. Breakout Force: >=46KN
Max. Gradeability: 30Deg.
Overall Dimension (L x W x H): 5000x2200x3100mm
Min. Turning Radius: 5750mm Engine
Model: YUNNEI YN38
Engine Type: Four-cylinder, In-line, Water-cooled, 4-stroke Diesel Engine
No. of Cylinder-bore/Stroke of Engine: 4 - 108x120mm
Engine Power: 60kW/2400rpm
Max. Torque of Engine: 270N.m
Min. Fuel Consumption Ratio: <=243g/kw.h
Torque Converter: YJ-280A Hydraulic Torque Converter
Gearbox Mode: Countershaft Power-shift
Gear Shift: 2 Forward, 2 Reverse
Max. Speed: 24km/h
Main Reducing Mode: Circular Arc Bevel Gear, Single Stage
Decelerating Mode: Single Stage Planetary Type
Wheel Base: 2530mm
Wheel Tread: 1600mm
Min. Ground Clearance: 310mm
System Working Pressure: 16Mpa
Fuel Tank Capacity: 80L
Service Brake: Foot Pedal Vacuum Booster, Air Over Hydraulic Caliper Disc Brake on 4 Wheels
Parking Brake: Hand Lever Flexible Shaft Controlled Externally Contracting Drum Brake
Tyre Type Specification: 16/70-20-16PR
Front Tyre Pressure: 0.22Mpa
Rear Tyre Pressure: 0.18Mpa
Optional Parts & Functions: Hydraulic Joystick, 180 degree Rotating Dump Bucket, Bulldozing Blade, Self-Loading Bucket and Canopy.
Note:
1. All photos are for reference only. Machines shown may include optional parts.
2. Available optional parts include Hydraulic Joystick, 180 degree Rotating Dump Bucket, Bulldozing Blade, Self-Loading Bucket and Enclosed Cabin.
3. All specifications and design characteristics are subject to change without prior notice.
