Completely Automatic Yarn Supply Auto Winder Vcro-I

Product Description

24h online customer service Company Profile
Hongda Textile Machinery Co., Ltd. China. is the subsidiary company of JingWei Textile Machinery Co., Ltd, which is a national textile company and a large-scale backbone enterprise of textile machinery manufacture industry, as well as an important manufacturing base for carding machine and auto-winder.
Qingdao Hongda was established in the year of 1920, so we have been engaged in the manufacture of textile machinery for one century(1920~2020~) and we enjoy an excellent reputation in the circle of this industry. As a state-owned company, we belong to the SINOMACH group, which is the No.1 machinery group in China and one of the Top 500 enterprises in the world rankings.
Since the year of 1998, we have started the manufacture of the non-woven machine and accumulated more than 20 years of experience for textile machinery until now, including PP Spunbonded (single beam, double beam, SSS, SMS, SMMS, SSMMS), melt-blown, Spunlaced, needling, and hot-air fabric production line. Product Description

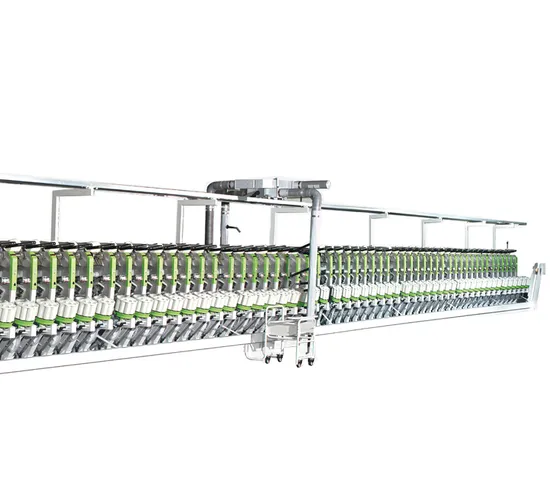

This type is a new generation of auto-winder with tray independently
researched and developed by Qingdao Hongda, which can meet users'
spinning requirements from 6 to the highest count of yarns and can be
equipped with up to 72 spindles. The equipment is stable and reliable,
the final product quality is excellent, the variety is suitable for a wide
range, and the operation is more convenient and simple.
Bobbin is supplied by the tipper, and the yarn control device controls
the yarn supply from bobbin to the vibrating plate, so that the
fluctuation range of the bobbin quantity in the vibrating plate is small.
The vibrating plate is equipped with air suction and cutting device to
ensure the output speed of the vibrating plate and avoid the winding of
the yarn head.
Need not manually insert tube, operator only need to push tube box from spinningframe to winder for winding. The whole process realizes automatic and successionalproduction and enhance production efficiency. Compared with common auto-winder, it canreduces 70% labor.
According to actual production, on-line detection and feedback from sensorautomatically start virbration transportation and tube yarn feed , featured by maximumautomation and flexiblility.
Human-machine interface display four levels menu, sensor collect data,ICS display scene of fault accurate position, real-time monitor yarn performance. ICS's
abundant display and storage function can increase health management and technological recipe to meet the needs of high-end customers.
Innovative Yarn tail monitoring device, for timely detecting the current situation of yarn picking.

Upper/lower air door control to enhance picking success rate and efficiently
reduce air comsuption.
Vertical suction moves up and down along straight rail to enhance motion
precision.
Suction nip and vortex blowing system resonably fit with tube diameter greatly
increase piecing rate.
Multi sets of yarn picking devices meet yarn supply for long machine in utmost.
CBF double-roll yarn end removing device in picker can enhance yarn picking
success rate 5-8%, more suitable to non- intensive doffing.
package

---
