Grouting Cement Hydraulic Pump Factory Direct Sales

Product Description

Description:

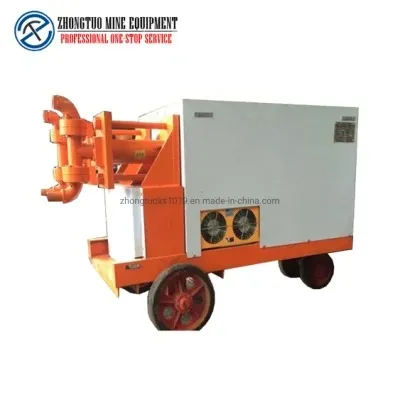

The hydraulic cement grout machine uses compressed oil or compressed air as the power source, and the cylinder or the cylinder and the grouting cylinder have a large ratio of the working area so that the cylinder can generate a high injection pressure with small pressure.
The grouting pump is suitable for grouting and water blocking, filling voids, reinforcing broken rock formations, etc. in mines, tunnels, water conservancies, subways, buildings, bridges, and other construction sites.
Parameter

Model	ZKSY90-125	ZKSY90-125	ZKSY100-150	ZKSY70-90	ZKSY90-100
Discharge volume	7m3/h	7m3/h	10m3/h	4m3/h	5m3/h
Pressure	0-16Mpa	0-16Mpa	0-16Mpa	0-8Mpa	0-12Mpa
Power	11kw	11kw	15kw	5.5kw	7.5kw
Outlet diameter	32mm	32mm	32mm	32mm	32mm
Suction port diameter	38mm	38mm	38mm	38mm	38mm
Size	1700*700*960mm	1600*900*1000mm	1700*700*960mm	1450*760*800mm	1600*600*950mm
Weight	500kg	600kg	550kg	300kg	380kg

Cement Mortar & Shotcrete Equipment
Company Profile
Shaanxi Zhongtuo Mining Equipment Company was founded in 2005 in Xi'an, Shaanxi Province, It is a foreign trade company specializing in the research, development, and sales of machinery and equipment in the fields of mining, bridges, pavements, and tunnels.
With the improvement of high-quality products and good services, our products are trusted and appreciated by customers from all over the world. At present, our customers are all over Russia, Thailand, Romania, Bulgaria, Albania, Colombia, Brazil, Peru, Uruguay, Saudi Arabia, Kuwait, United Arab Emirates, Oman, Turkey, Israel, Kazakhstan, India, and many other countries.
About Certifications:
Packing and Shipping:
Our Team
FAQ: Q1: Whether the rig is used for rock holes or soil holes? A1: Equipped with different drill bits according to the application object. Rock drilling rigs are equipped with round steel drill impact hammers and rock drill bits. The soil drilling rigs require a twist drill pipe and a three-blade drill bit. Q2: How much tonnage can a bridge jack lift?? A2: The range is from 50 to 1000 tons, depending on the application needs we have the right choice for you.
Q3: How many meters is the connection between the jack and the oil pump? A3: The factory standard is two meters. If you need longer, we will make it for you.
Q4: What is the difference between the hydraulic oil pump? A4: For the tension jack, it is 50 MPa 3 kW oil pump and 60 MPa 4 kW oil pump. Q5: What kind of packages does a set of anchors have? A5: Anchor ring, clip, anchor pad, spiral rib. Q6: Which payment term can you accept? A6: 100% T/T( Decide according to actual situation)
Q7: How long is the machine warranty? A7: One year for the machine and provide technical support according to your needs. Q8: How long will it take to arrange production? A8: we can deliver the normal goods within 7-15 days. Other nonstandard electrical items we will deliver within 25-30 days. Q9: Which trade term can you accept? A9: Available trade terms: FOB, CIF, CFR, EXW, etc. Q10: Do you provide samples? Is it free or extra? A10: Yes, we could offer you the sample machine. But it's not free. You need to pay for the sample and the cost of the freight. Q11: What are your terms of payment? A11: We accept T/T, Western Union, Money Gram, Paypal, L/C, etc.

---
