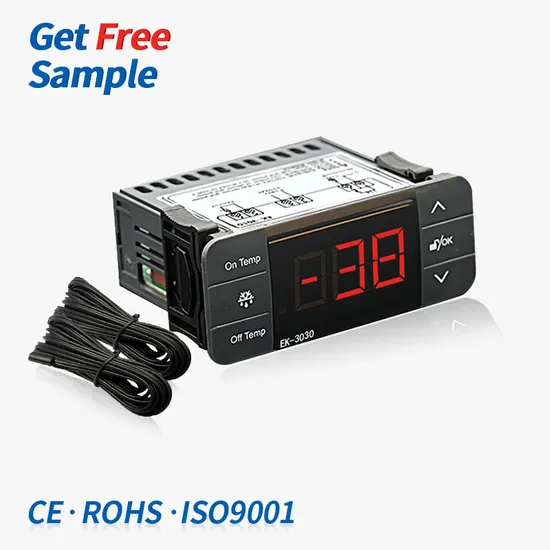

Ek-3030 Practical Kitchen Cabinet Digital Temperature Controller Dual LED Display Thermostat

Product Description

Features and functions:
1. This controller is suitable for temperature control of medium and low temperature cold storage;
2. With temperature measurement, display and control functions. Calibration, forced defrost, over temperature. Alarm and sensor failure alarm, one key to restore the factory default value, parameter preset, one key to restore;
3. Adopt touch button design, with button lock function;
4. Two sensor inputs: cabinet temperature sensor and defrost temperature sensor. Three-way control output: refrigeration, defrosting and fan.
technical parameter:
1. Temperature measurement range: -40ºC~99ºC
2. Temperature control range: -40ºC~85ºC
3. Accuracy: ±1ºC at(-30ºC~50ºC); ±2ºC other ranges
4. Resolution: 0.1ºC
5. Power consumption: <5W
6. Output capacity: Refrigeration: 10A/220VAC Defrost: 10A/220VAC Fan: 10A/220VAC
7. Power supply: 220VAC ±10%, 50/60Hz
8. Ambient temperature: -10ºC~60ºC
9. Probe type: NTC (10KΩ/25ºC, B value 3435K)
10. Sensor length: 2M
Specification:
1. Product size: 85*35*64mm
2. Installation size: 71*29mm

---
