Glass Bottle Beer Tunnel Pasteurizer

US$40,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
PL-1
Condition
New
Customized
Customized
Voltage
380V
Composition
Sterilization Equipment
Processing Material
Natural Ingredients
Process
Thermal Processing
Transport Package
Wooden Case
Specification
CE
Trademark
Mars
Origin
Jiangsu, China (Mainland)
HS Code
841989
Production Capacity
80 PCS / Year

Product Description

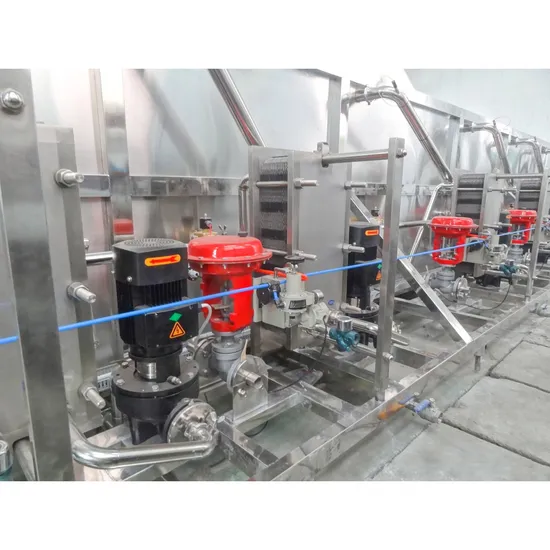

Glass Bottle Beer Tunnel Pasteurizer:
The filling temperatuer of carbonated drink is 0-4 celcius degree, and the environment temperature is 20-30 degree, so the filled bottles will be full of water drops if they are not warmed, the bottle warming machine warms the bottles by spraying warm water from the nozzles to the outside walls of PET bottles to keep the bottles warm and away from water drops, and and make it convinent for labelling.
Features:
1)The chain plate apply anti-friction and high temperature resistance engineering plastic.
2) Apply advanced PLC controller to assure all action precision.
3)The conveyor is frequency controlled.
4)All spray tubes are made of stainless steel and spray evenly.
5)All spray nozzles are made of engineering plastic.
6)The catchment flume is made of stainless steel and equipped with a level alarm device.
7)The spray-cooling tunnel has a spray cooling recycling water pump.
Model PLJ-1 PLJ-2 PLJ-3
Capacity(b/h) 3000-4000 5000-6000 9000-10000
Bottle inlet temp. 3-5
Bottle outlet temp. <45
Sterilizing temp. 62-85
Sterilizing time 10
Steam pressure 0.5-0.6MPa
Width of belt(m) 1.22 1.5 2
Circling water(m3/h) 6.3 10 20
Water consumption(m3/h) 1 1.5 2
Water pressure:≥0.2Mpa,water temp. is 20C
kg/h steam consumption 200 350 600
Overall dimension(mm) 8000×1500×1650 10000×1800×1650 15000×2000×1650
Total weight(kg) 4000 80000 12000
