High Quality Vertical Machining Center LV855A 3 Axis 4 Axis 5 Axis CNC Milling Machine with CE

Product Description

Product Description
LV-855A is designed for mass production of auto parts, electronic communication parts, aerospace parts, medical equipment processing, precision mold manufacturing and so on.
1.The processes of artificial annealing-vibration-artificial aging-nature aging processes(6 months) can keep the casting iron parts long time precision without deformation.
2.High rigid structure can bear the inertia produced by high G movement.
3.High speed mute screw and mute linear rail reduce thermal displacement and improve precision.
4.Great performance of spindle makes the high speed cutting efficiently.

Technical Data
Worktable	Table Size	1000*550mm
	T-slot (Width x No. x Distance)	18mmx5pcsx90mm
	Max. loading weight	600kgs
Travel	X axis travel	850mm
	Y axis travel	550mm
	Z axis travel	550mm
Guide ways	X linear wide/numbers/blocks	35mm roller / 2pcs / 4pcs P grade
	Y linear wide/numbers/blocks	35mm roller / 2pcs / 4pcs P grade
	Z linear wide/numbers/blocks	35mm roller / 2pcs / 4pcs P grade
Screws	X/Y/Z screw specific	4016/ 4016/ 4016 C3 grade
Spindle	Spindle speed	10000rpm/ 12000rpm
	Spindle motor power	7.5 / 11KW
	Spindle taper	BT40
	No.of front bearings	NSK 4 pcs
	No.of rear bearings	NSK 2 pcs
3 Axes	X/Y/Z motor power	1.8 / 1.8 / 3 KW
Feed	X/Y/Z feed speeds	48/48/48m/min
	X/Y/Z cutting feed	1-10000mm/min
Accuracy	Positioning accuracy	0.006mm Acc. VDI 3441 Std.
	Repeatability	0.003mm Acc. VDI 3441 Std.
Tool magazine	Tool quantity	24T
	T-T time	1.8sec
Dimension& Weight	Approx. outer dimensions	2600x2550x2650mm
	Approx. weight	5000kgs

The sheet metal appearance of JUGANG Precision Machinery is dominated by clean white and bright red, which is simple yet lively. Each machine meets the German Acc. VDDI 3441 accuracy standard.
Besides good spindle function, excellent ATC speed and fast displacement speed also ensure the machine's high speed and high efficiency.

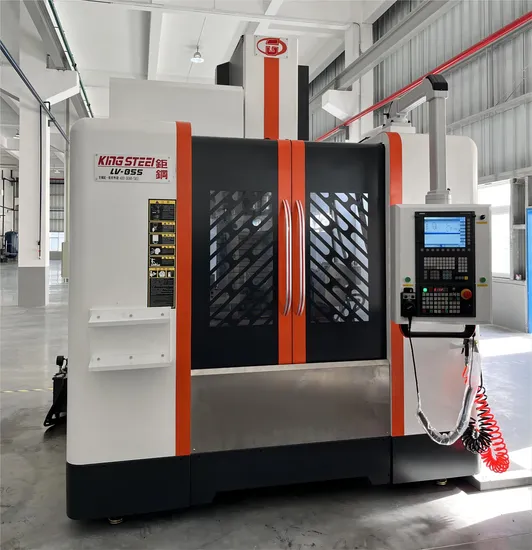

This LV-855 vertical machining center is the hot-selling model of JUGANG this whole year and has a wide variety of optional configurations. It is designed for mass production of auto parts, electronic communication parts, aerospace parts, medical equipment processing, precision mold manufacturing and so on, the three-axis travels are 850mm, 550mm and 550mm respectively. The sheet metal contour is rounded corner.

Detailed Photos
The machine body are made of high-grade resin sand cast iron and high-tensile casting materials, with strong shock absorption and good wear resistance and have been treated by tempering, vibration, artificial aging and natural aging to ensure that the machine can maintain the best precision for a long time.
Three Kind Side Door Options:

Certifications

Company Profile
YOUR SATISFACTION IS THE ETERNAL PURSUIT OF KING STEEL !

Choose once and serve for a lifetime.
Jugang Precision Machinery is worth having
Our Advantages
Jugang factory equipped with a variety of professional testing devices, such as laser interferometer testing, ball-bar roundness detection, spindle dynamic balance testing, three-coordinate testing, machine geometric accuracy testing, etc., by professional personnel strictly follow the standards to carry out quality inspection at each production phase to guarantee each one is of high quality

Laser Detection

Ball-bar Roundness Detection

Base Precision Scraping


FAQ
Q1. Is it all right to make customer's own brand name?
A: yes. we are available with OEM

Q2. Are you a manufactuer or trading company?
A:We are the manufacturer

Q3. Can you do the design for us?
A: yes. if you want a different control system design or higher column, we are available.

Q4 . What is your terms of delivery?
A: FOB Xiamen.

Q5. What's your payment term?
A: T/T OR L/C at sight.

Q6. Can we visit your factory before order?A: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking. Q7: Do you have a stock?A: Yes, most of our machines have stocks to ensures faster shipment times.

---
