Plastic Bucket Handle Making Injection Molding Machine Vertical

Product Description

Plastic Bucket handle making injection molding machine vertical
Function:
1.Vertical direct hydraulic clamping system is designed for accurate, safe operation, especially suitable for insert molding.
2.With double slide table or rotary design, putin, take out products and molding
finish at the same time, which is more safe and efficient for production , then
reduce the cost of production.
3.High precision mold platen ( Parralelism/ flatness : 0.01/100mm), heavy-duty tie-bars, and low-pressure mold clamping work together to greatlyextend machine
& mold life.
4.Nitride and NIP/ Nitroflon coated screws and barrels are long-lasting, robust and
provide superior acid/alkaline resistance.
5.Standard : Varuable Pump for Energy Saving 30%-50%

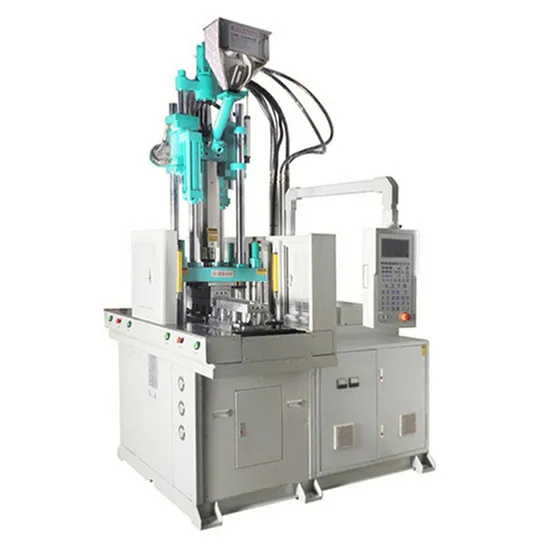

Detailed Images:
Parameter of Machine:

JY-250ST-DM/350ST-DM/500ST-DM Technique specification
Model			Units	JY-250ST-DM			JY-350ST-DM			JY-500ST-DM
Injection System	Screw Diameter		mm	26	28	30	30	32	34	32	34	42
	Injection Pressure		Kg/cm2	1530	1270	886	1171	996	810	1642	1358	960
	Theoretical Shot volume		cm3	61	70.8	81	81	92	117	113	134	194
	Max. Shot Weight(P.S)		9	56	64	74	74	84	106	102	102	176
	Injection Rate		cm3/sec	57	66	76	62.5	71	95	49	59	84
	Screw speed Max		rpm	0-205			0-190			0-190
	Temperature Control		ZONE	3			3			3
Clamping System	Clamping Force		T	35			45			55
	Slide Platen Size		mm	700*350			800*400			900*450
	Distance Between Tie Bare		mm	375*205			410*250			470*280
	Min Mold Height		mm	150/100			200/150			250/200
	Opening Stroke		mm	180			200			200
	Max. Open Daylight		mm	330/280			400/350			450/400
	Ejector Force		T	1.5			1.5			1.5
	Ejector stroke		mm	135			135			135
Power&Heading System	Max. Hydraulic Pressure		Kg/cm2	140			140			140
	Pump Output		L/min	34.5			37.2			40
	Pump Motor Power		Kw/HP	3.75/7.5			5.5/7.5			7.5/10
	Barrel Heating Power		Kw	2.4			2.8			4.5
	Total Wattage		Kw	6.3			9			12
Others	Machine Dimensions(L*W*H)		m	1.5*1.15*2.52			1.8*1.25*3.08			2.2*1.2*3.3
	Shipping Size(L*W*H)		m	1.8*1.3*2.3			2.0*1.45*3.08			2.4*1.3*2.6
	Machine Weight		T	1.7			2.6			3.3
	Shipping Weight		T	2			2.9			3.6

Application :
1.Electric parts
2.Coil encapsulation parts
3.Daily products like microwave electriciron shells etc.
4.Auto industry
-Lamp reflector/Large parts of hood ,and rear doors,electric heating box,engine hood,horn box,big lamp shell and branch electric head etc.
5.Precision parts
Circuit breakers shell without fuses,motor shell ,loudspeaker box,cassette and video parts,copying machine,faxing machine,printing machine,medical equipment,measuring apparatuses etc.

Youtu Videos :
Tube shoulder making machine with double sliders	https://youtu.be/R5cuC4s6uK4
bucket handle making machine with double slider	https://youtu.be/KwGKRYZsF9M
35Tons security seal lock	https://youtu.be/CHEJshwKrXU
35Tons oxygen tube	https://youtu.be/1y_QEN5CMsg
45Tons Europe Plugs making	https://youtu.be/IRDLWHtWB9w
45Tons South Africa 3 pins plugs	https://youtu.be/JLMHU_XmlqU
Double slide machine	https://youtu.be/yBJAaYGzq5g
55Tons C-type Car accessories making	https://youtu.be/JBczO_C1XbY
55Tons C-type 2 pins plugs making	https://youtu.be/sHgicvjktNU
Silicone rubber machines	https://youtu.be/P6yMnAQYP3g

FAQ:
Q1: Are you a trading company or a manufactory?
A1: We own a factory ourselves, and we can assure the quality we manufactured.
Q2: What's your guarantee or the warranty of the quality if we buy your machines?
A2: We offer you high quality machines with high quality afterservice. Also we have one year
warranty of the spareparts, free of charge.
Q3: Why choose Jieyang Machinery Co.,Ltd.?
A3: Our products with more than 30% energy saving. Highest Cost effective environmentally. Excellent pre-sale and after-sale services.

---
