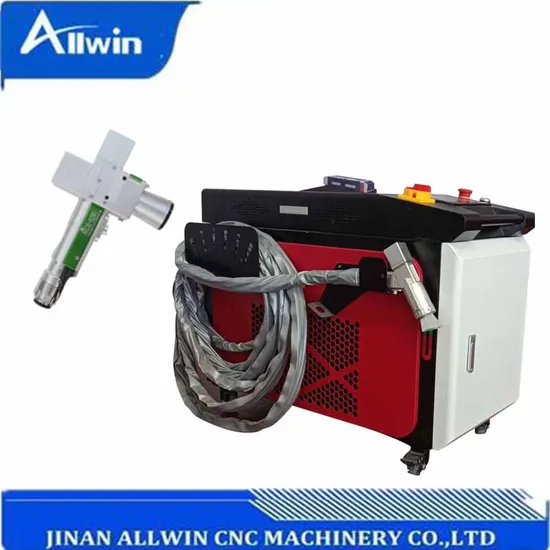

Best Price Laser Cleaning Machine Laser Rust Remover Dust Removal Mobile Cleaner Machine

Product Description

Product Description
It adopts high-quality laser, laser optical scanner and control system to meet the requirements of metal surface cleaning process. The metal laser cleaning machine has the characteristics of fast speed, high efficiency, good effect, wide application and green environmental protection. No chemical solvent, no pollution, no noise, harmless to human body, laser paint removal machine is a "green" cleaning technology.
Product Features
★High energy density, low heat input, small amount of thermal deformation, and narrow melting depth in the heat and heat affected zone of the melting zone.
★The cooling rate is high, so that the weld structure can be fine and the joint performance is good.
★ Compared with contact welding, laser welding eliminates the need for electrodes, reducing daily maintenance costs and greatly improving work efficiency.
★The weld is fine, the penetration is large, the taper is small, the precision is high, the appearance is smooth, flat and beautiful.
★ No consumables, small size, flexible processing, low operating and maintenance costs
★The laser is transmitted through the optical fiber and can work with the assembly line or the robot.
★ The touch switch is equipped with a safety clip, and the laser beam can only be emitted when the welding nozzle touches the metal.
★ Red light positioning is used to verify the position during welding.

Machine Model	AW-1000W	AW-1500W	AW-2000W
Laser Power	1000W	1500W	2000W
Laser Wavelength	1064-1080nm	1064-1080nm	1064-1080nm
Welding Depth	2mm	4mm	7mm
Modulation Frequency	20-20kHz	20-20kHz	20-20kHz
Energy Stability	<3%	<3%	<3%
Blowing Protection	Argon/Nitrogen	Argon/Nitrogen	Argon/Nitrogen
Electricity Demand	AC 220V/50Hz	AC 220V/380V/50Hz	AC 220V/380V/50Hz
Machine Power	5.6KW	7.1KW	9.1KW
Cooling System	Water	Water	Water
Dimension	1130x590x1200mm	1130x590x1200mm	1130x590x1200mm
Weight	230kg	230kg	230kg

Product Application
The handheld laser welding machine can be widely used in the complicated and irregular welding processes of cabinets, kitchens and bathrooms, stair elevators, shelves, ovens, stainless steel door and window guardrails, power distribution boxes, stainless steel home appliances and other industries.it has the advantages of simple operation, beautiful welding seam, fast welding speed and no consumables.
It is used in thin stainless steel, iron, For welding of metal materials such as galvanized sheet,
it can perfectly replace traditional argon arc welding, electric welding and other processes.
Detailed Photos
Install welding nozzles and welding focus lens for welding works Install cleaning lens and cleaning tools for clean works

Welding with gun Laser Cleaning
CNC controller:
Pulse and interval time can reach 0.01 seconds; There are wire feeding and wire stop switching functions, which is simple and convenient.
Dual drive wheel feeding system,applicable to a variety of diameters.


Raycus Laser Source
It has higher photoelectric convers- ion effciency, better and more stable beam quality, and stronger anti-high-reflection ability. At the same time, it introduces an optimized second-generation optical fiber transmiss-
ion system to ensure a more stable and precise cutting effect in thick plate cutting.
Industrial Water Chiler:
With a complete cooling system, the whole machine is stable, efficient and durable.
Simple to us,stable performance energy saving and high efficiency.

Large fan cooling:
Even if it works 24 hours a day, it can make the laser source cooling faster


Laser Clean Case
Removal of oils, resins, glues, dust, stains, and production residues. Roughening of metal surfaces.1: Paint removal, rust removal, and oil stain removal before welding or bonding; treatment of oxides and residues after welding.2: Paint removal, rust removal, and oil stain removal before welding or bonding;treatment of oxides and residues after welding.3: Mold cleaning, such as tire molds, electronic molds, and food molds.Removal of oil stains after precision component production and processing.4: Treatment of oxides, paint removal, and rust removal during the production or maintenance of aerospace weapons, ships.5: Cleaning of metal surfaces in narrow spaces.Cleaning of cultural relics, rocks, and exterior surfaces of buildings.6: Cleaning of mechanical parts, cleaning of pipes and fittings, cleaning of automobile parts, cleaning of old paint on aircraft, etc.
Packaging & Shipping


Company Profile
Established in 2017, ALLWINCNC are a manufacturing company specializing in the production of plasma and laser consumables.We want to build long-term relationships with customers rather than developing one-off deal.
We want to build long-term relationships with customers rather than developing one-off deal.
The core idea of ALLWIN is our commitment to achieving mutual success for our customers, shareholders, and employees through collaboration.
FAQ
1), Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across
the world. We need your machines running in order to keep your business running.
2),Q: I am not sure if this machine suitable for my work?
A: Don't worry, just tell me your working materials, max working area and cutting/welding thickness,
then I will recommend you the most suitable machine for you.
3),Q: Are you factory or trading company?
A: We are factory, which manufactures CNC cutting/welding machines , with 13 years experience.
4)Q. When I got this machine, but I don't know how to use it. What should I do?
Operation video and manual will be sent together with machine. Our engineer will do training online.If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.
5)Q:How to choose suitable model?
Pls provide a photo of the product you need before or advise us your needs,we will give suggestion.

---
