Mx-10f 2.4 Inch Wireless Voltage Ammeter Battery Management System Temp Coulomb Capacity Meter 0-120V 300A Color Screen

Product Description

DO YOU PLAN TO CUSTOMIZE THE DESIGN PRODUCTS?
TALK TO THE CHIEF DESIGN TEAM ABOUT YOUR PRODUCT IDEAS!
CUSTOMIZED DEVELOPMENT AND PRODUCTION: BLUETOOTH MP3 PLAYER , RECORDER AUDIO/AF FM RADIO/CD+BLUETOOTH TRANSMISSION/TWS WIRELESS EARPHONE Product Parameters

Product Name	Energy storage battery wireless power display device	Function	Positioning and Health data tracking
Color	Customized Colors	Application	Android IOS
MOQ	1000pcs	Material	ABS+PCB
Protocol	BLE Dual Protocol	Usage	Track Activity

Detailed Photos
Product Description Features:
1. Wireless transmission of data to avoid interference caused by complex wiring between the display and the detection module;
2. The Hall sensor is used to realize non-contact detection of current, without breaking the line, safe, reliable and convenient;
3. Voltage, current, power, temperature, capacity, percentage of remaining capacity, and running time are displayed at the same time;

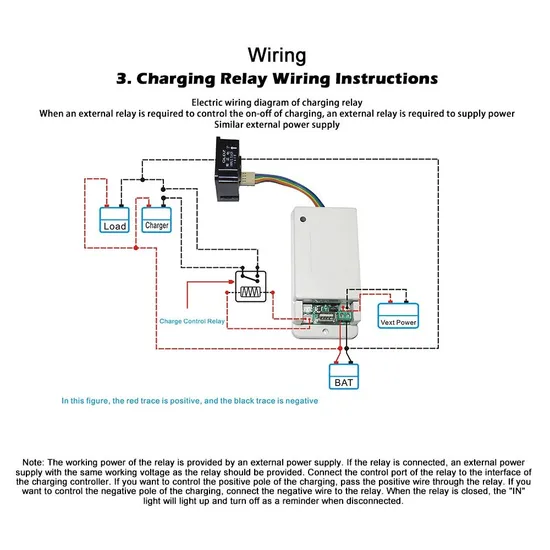

4. Reserve interface for charging and discharging double relays, 5 relay working modes can realize automatic disconnection and automatic closing of charge and discharge;
5. With charge overvoltage, discharge undervoltage, charge overcurrent, discharge overcurrent protection, over temperature protection function, low temperature protection function, with buzzer alarm prompt function;
6. With power-off memory function, it can record the number of AH and WH before power-off;
7. When charging, the percentage progress bar is switched to the color running water light display, and the display screen shows the breathing light flashing effect, which enhances the prompt;
8. With voltage, current, temperature waveform curve display function;
9. Chinese and English language selection, two display colors can be switched, suitable for different customer needs
Description:
MX-10F is a multi-function instrument based on 2.4G wireless data transmission technology, which can display various physical parameters such as voltage, current, power, capacity, energy, temperature, running time, etc. in real time. Battery charge and discharge management and over-voltage, under-voltage, over-current protection accompanied by buzzer alarm. Moreover, the instrument uses a 2.4-inch color LCD as a display, which displays more comprehensive, clear and easy-to-observe data.
Attention and Maintenance:
1. Do not exceed the voltage and current range of the instrument, otherwise the instrument will be damaged.
2. The positive and negative poles cannot be reversed, and the reversed connection cannot be correctly measured.
3. The working temperature is -10~50ºC, the storage temperature is -20~70ºC, and the instrument is kept in a dry environment.
4. Do not attempt to disassemble the instrument. Damage to the package will void the warranty.
5. When the instrument is working normally, please do not move the instrument violently to avoid irreparable damage to the internal circuit.
Package Included:
LCD monitor X1
Measurement module X1
USB data cable X1
Chinese and English manual X1
Connection cable X3
