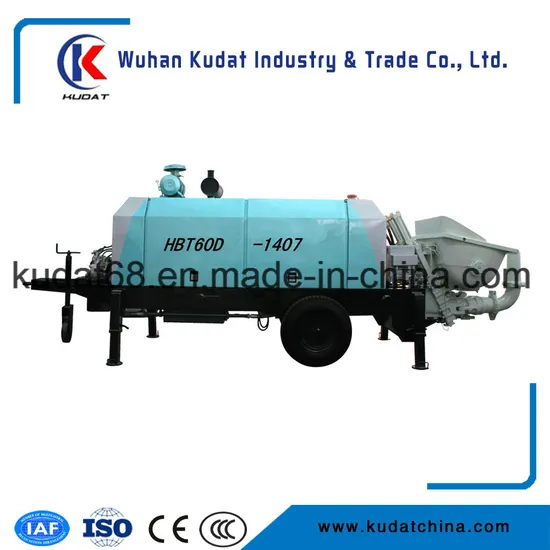

Diesel Tralier Concrete Pump Hbt60d

US$30,000.00-40,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
HBt60D-1407
Machining Process
Hydraulic
Structure
Cylinder Type
Productivity
60m²/h
Feeding Height
1370mm
Vibrating Amplitude
2.6mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Blue
Valve Type
Slide Valve
Max. Theo. Delivery Volume (M3/H)
20-61
Feeding Pressure (MPa)
6.7
Main Pump
A8V80
Engine
Diesel
Hydraulic Oil Tank Capacity (L)
400
Loading Height (mm)
1398
Slump
8-23cm
Total Weight (Kg)
5800
Overall Dimension (Lxwxh) (mm)
6200*2075*2460
Transport Package
Nude
Specification
CE
Trademark
Kudat
Origin
China
HS Code
8413
Production Capacity
500units/Month

Product Description

The HBT series concrete pumps have over 20 types of products specifications, including diesel engine and electrical engine S valve and gate Valve pumps. Through worldwide souring of parts and technology from leading suppliers, it enables HBT series concrete pumps to a high efficient and reliable concrete transporting machine.
Using Bosch Rexroth of Germany to supply hydraulic components. Its high reliability and longer economic life will enhance the overall quality of the machine as a whole.
Adopting double pumps double returning inflow open hydraulic pressure system, so that oil out pumping and direction switching are operating independently, rendering the system simpler and more reliable.
Using returned oil filter technology to prevent alien
Objects from entering the hydraulic circuit, further
Improving the reliability of the system.
Using the anti-wear hydraulic oil specially made
By Esso of US enhacing durability of the machine
Model HBT60D-1407
Valve type slide valve
Max. theo. Delivery volume (m3/h) 20-61
Feeding pressure (MPa) 6.7
Main pump A8V80
Engine Diesel
Power/speed (KW/RPM) 110/2000
Main cylinder (Bore x Stroke) 90x1400 mm
Delivery cylinder (Bore x Stroke) 195x1400 mm
Hydraulic oil tank capacity (L) 400
Loading height (mm) 1398
Volume/height of hopper (m3/mm) 0.4/1398
Slump 8-23cm
Max. aggregate diameter 125A/150A (M) 40/50
Max. vertical delivery 150A/125A (M) 110/120
Max. horizontal delivery 150A/125A (m) 500/550
Total weight (kg) 5800
Overall dimension (LxWxH) (mm) 6200x2075x2460
