Stardrawing 100/125/150/200mm 4/5/6/8inch Heavy Duty Polyurethane Wheel PU Cast Iron Caster for Dolly

Product Description

Detailed Photos

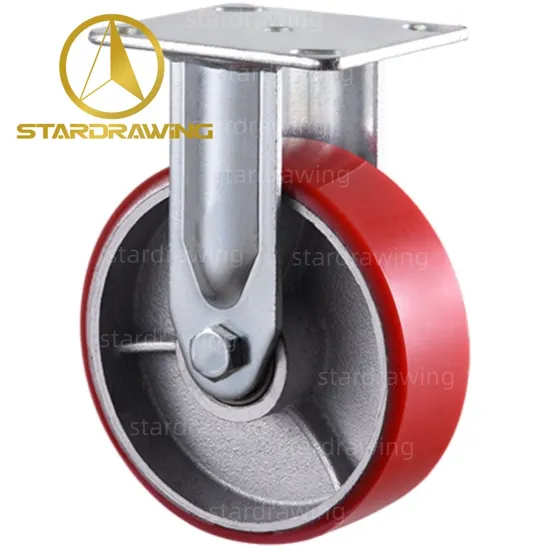

STARDRAWING 100/125/150/200mm 4/5/6/8inch Heavy Duty Polyurethane Wheel PU Cast Iron Caster for Dolly

Product Description
STARDRAWING 100/125/150/200mm 4/5/6/8inch Heavy Duty Polyurethane Wheel PU Cast Iron Caster for Dolly
A strong, ultra durable wheel, it has a very high strength to weight ratio and is capable of long service under heavy loads. Maroon color polyurethane Chemically bonded to heavy cast iron core, Non marking, non- staining, non-conductive tread, Floor protective, Resist oil, grease, water and most solvents.
If you don't see what you want, STARDRAWING's engineering team can custom design a caster for any application! Main Features
1)Normal type economical price heavy duty PU on cast iron caster
2)Durable body, Long service life
3)Resist to grease, oil, water and most solvents
4)Floor protective, non-conductive, non-staining, non-marking tread
Product Parameters

Wheel Diameter (MM)	Tread Width (MM)	Mounting Height (MM)	Top Plate Size (MM)	Bolt Hole Pattern (MM)	Mounting Hole Diameter (MM)	Load Capacity (KG)
100	50	142	114*100 OR 135*110	85*70 OR 105*80	11	400
125		164				450
150		193				500
200		240				550

Wheel Diameter (MM)	Tread Width (MM)	Mounting Height (MM)	Top Plate Size (MM)	Bolt Hole Pattern (MM)	Mounting Hole Diameter (MM)	Offset (MM)	Swivel Radius (MM)	Load Capacity (KG)
100	50	142	114*100 OR 135*110	85*70 OR 105*80	11	30	80	400
125		164				35	96.5	450
150		193				40	117	500
200		240				51	151	550

Wheel Diameter (MM)	Tread Width (MM)	Mounting Height (MM)	Top Plate Size (MM)	Bolt Hole Pattern (MM)	Mounting Hole Diameter (MM)	Offset (MM)	Swivel Radius (MM)	Load Capacity (KG)
125	50	164	114*100 OR 135*110	85*70 OR 105*80	11	35	156	450
150		193				40		500

Wheel Diameter (MM)	Tread Width (MM)	Mounting Height (MM)	Top Plate Size (MM)	Bolt Hole Pattern (MM)	Mounting Hole Diameter (MM)	Offset (MM)	Swivel Radius (MM)	Load Capacity (KG)
100	50	142	114*100 OR 135*110	85*70 OR 105*80	11	30	126	400
125		164				35	132	450
150		193				40	152	500
200		240				51	162	550

Wheel Diameter (MM)	Tread Width (MM)	Mounting Height (MM)	Top Plate Size (MM)	Bolt Hole Pattern (MM)	Mounting Hole Diameter (MM)	Offset (MM)	Swivel Radius (MM)	Load Capacity (KG)
100	50	142	114*100 OR 135*110	85*70 OR 105*80	11	30	80	400
125		164				35	96.5	450
150		193				40	117	500
200		240				51	151	550

Applications
STARDRAWING 100/125/150/200mm 4/5/6/8inch Heavy Duty Polyurethane Wheel PU Cast Iron Caster for Dolly is Recommended for Platform trucks and transport dollies, Parts bins, storage racks, textile carts, Heavy duty trash containers, Conveyor systems, Warehousing & freight terminal dollies, Ground support equipment, Production racks & fixtures, Steel handling carts, Welding tables, Freight terminal dollies, Gantries and hoppers, Excellent for industrial and commercial heavy duty equipment. Packaging & Shipping

Testing Machine
FAQ
Dear : Can I get free caster wheel samples from Stardrawing ?
STAR : We would be honor to offer you free caster samples, and we believe that you would be willing to pay for the freight fee for such good products. Please provide your DHL/FedEx or other freight collect number and advise which express type should be chosen, international express type(2~3days) or economic type (4~5days).
Dear : What is your payment terms of caster ?
STAR : It is undisputable and crystal clear that 30% advanced payment, 70% before shipment, hope we have reached agreement for this regular payment manner. Dear : What about your lead time ?
STAR : Usually, caster sample needs 5-7 days, mass production time needs 30 days. It is up to the quantity and stocking. Dear : Is it OK to print my logo on casters ?
STAR : Sure.
Option 1 - Build the molds and fixtures upon your sample or technical drawings
Option 2 - Add your logo on fork or wheel
Option 3 - Pack the casters in your branded carton Dear : How can I trust the quality of your casters ? STAR : We tell you that we have variety of international quality certificates, we have a very strict quality control system, we do a series of caster tests before shipping. Right, you still have no idea about our quality. Therefore, no hesitate! Just place a trial order from Stardrawing. You will not only trust the quality of casters, but also trust the character of Stardrawing people since then.

---
