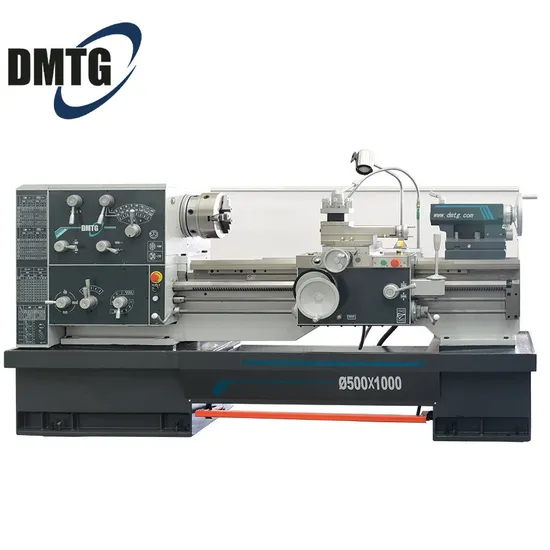

Dmtg Cde6250A Conventional Lathe Machine Conventional Lathe Machine Metal

US$8,000.00
1-4 Pieces
US$5,000.00
5+ Pieces

Basic Info.

Model NO.
CDE
Processing Accessory
Centre CNC Lathe
Guide Rail
Inclined Guide Rail
Power Source
Electric
Automatic Grade
Semiautomatic
Setting Mode
Table
Precision
High Precision
Certification
CE
Condition
New
Transport Package
Wooden Case Packing
Trademark
DMTG
Origin
Liaoning
Production Capacity
100 Sets/Month

Product Description

DMTG CDE6250A Dalian Machine Conventional Lathe Machine Small Metal Lathe Hight Quality Conventional Lathe Machine Metal
MAIN PARAMETER Max swing diameter over bed mm φ500
Max swing diameter over cross slide mm φ290
Max workpiece length mm 1000/1500/2000/3000
Max cutting length mm 795/1245/1845/2745
Max turning diameter mm φ500
Spindle center height mm 250
Bed guideway width mm 394
SPINDLE Spindle motor power kW 7.5
Spindle bore mm φ82
Chuck size mm φ250
Taper of spindle bore Metric φ90 1:20
Type of spindle nose D8
Spindle speed ranges r/min 26-2000
TAILSTOCK Diameter of tailstock quill mm φ75
Travel of tailstock quill mm 150
Taper of tailstock quill No.5 MT
TOOLPOST Tool shank size (Vertical 4-position) mm 25X25
Other Machine dimension mm 2930*1223*1295
Weight mm 2170kg
