Automatic Feeding Gravimetric Dosing Batching Weighing Mixing Conveying System for PVC Compounding Mixing Small Additive

Product Description

Why Choose BOGDA?
1. Bogda uses internationally renowned brand motors and appliances for customers to buy locally.
2. Bogda can do plant planning for customers and maximize benefits with minimal cost.
3. Bogda adopts special screw, long life, high plasticization.
4. Bogda machinery high degree of automation, low energy consumption, high output.
5. Bogda equipment design is reasonable, installation and disassembly is simple and convenient.
6. Once the customer has any problem in installing and operating the machinery, Bogda will arrange corresponding technicians to provide online video guidance for the customer in the shortest time or go to the customer's factory to solve the problem if the government policy allows.
Product Description
PVC Additives Auto Dosing Batching Metering And Mixing System Machine For PVC Profile Pipe Extrusion Line
PVC Additives Auto Dosing Batching Metering And Mixing System Machine application for plastic extrusion formula weighting, heating mixing, cooling mixing to final storage.
Whole machine control system by SIEMENS newest model PLC control system, include CPE, stabilier, ACR ( and other additives) auto dosing, PVC and Caco3 vacuum loading, all raw materials mixing according to setted formula. Control part include auto dosing, vacuum loading, heating mixing, cooling mixing, auto and manula discharge, conveyor mixing material to final storage.

PLC screen touch to operate, English / local langue freedom to switch, clear division of regional functions, very easy operate.
Automatic dosing part
PVC powder + Caco3 + CPE + Foam agent + Stabilizer, etc... mixing by PLC control system
Additives plastic raw materials for automatic weighing by electronic balance sensor

Advantages: • Anti-bridging device avoid raw materials stick to the wall of batch
• Filter adsorb powder, and finally pour the material into the batch
• Auto sensing weighing until all additives conveyor together in one batch, weight control by SIEMENS control system
Vacuum feeding system
Vacuum feeding PVC powder and Caco3 station, additives raw materials after weighting to heating mixing part
Mixing part
1- Heating by with self-friction or electric heating raw materials to 120ºC, the first batch mixing time about 15 minutes, then the second mixing time about 8 minutes
2- Temperature monitoring by thermocouple transfer to PLC system
3- Heating mixing can choose manual discharge or automatic discharge
4- Cooling by cooling water and, cooling mixing about 8 minutes to 40ºC

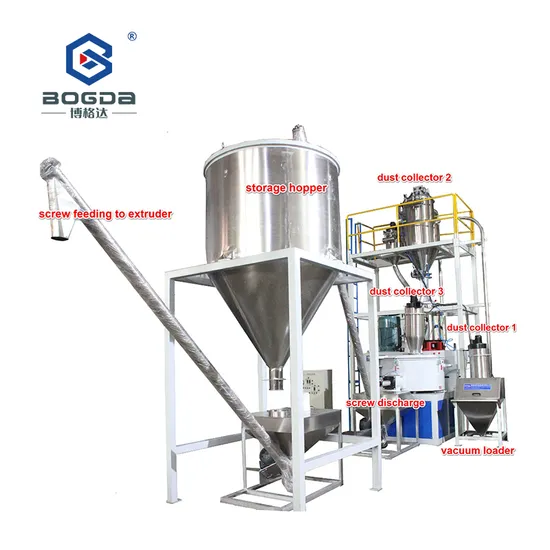

Final storage
1. Inner part equip with anti-bridging device, that won't stick to the wall storage even raw materials mixed one week
2. 2 screw conveyors for 2 extrusion line fully automatic, no need worker

Product Parameters

Min. bin number	4
Max. bin number	10
Weighing speed	15kg/120 seconds
Bin raw material	S.S. 304

Certifications
Packaging & Shipping
Company Profile
BOGDA Machinery Group is a high-tech and innovative company dedicated to the research and development and manufacturing of plastic extrusion molding equipment. Deeply trusted and praised by customers, BOGDA company has many subsidiaries such as plastic pipes equipment, sheet/board/film intelligent equipment, intelligent automation equipment, and granulation equipment. We are familiar with kinds of plastic raw materials to help you choose the most suitable machine on best quality by economically. Leading technology and excellent quality have been highly recognized by authoritative departments and markets. Products are exported to more than 110 countries and regions such as Europe, America, the Middle East, Southeast Asia, South America, Russia, Turkey, Italy, Poland, Brazil, Romania, etc. The company has a high-quality talent R&D team and more than 20 years of experience in the industry. A team of mechanical and electrical commissioning engineers, as well as an advanced machining base and a standardized assembly workshop. More than 600 sets of high-end plastic extrusion lines are produced every year.
BOGDA has advanced design concepts in the extrusion field, strives for perfection in product quality, and continues to improve in technology. It can provide customized solutions for each customer to meet the different needs of customers. Project planning, product positioning, plant planning, equipment installation and commissioning, customer staff training, equipment after-sales maintenance and other all-round services. Our advantage is to provide customers with desired, satisfactory, and high-quality products to help customers create the greatest Profits and business opportunities, customer success is our ultimate goal.
FAQ
1. How many electric, water, air need for the machines?BOGDA: technical department supply the whole layout for workshop details.2. Can I operate machine if don't have experienced engineers?BOGDA: (1) short-time engineers to customer company (5-15days) (2) Year-time working as requirements3. Any quality checking before shipment?BOGDA: 100% confirm, run and test machines before shipment with quality certificate.4. How long is the guarantee?BOGDA: 12 months since the first day customer operates (except wear parts)5. How can u help us when face some technical problem?BOGDA: 24 hours by e-mail, message, calling. If problems happens need engineer we will arrange the closest or agent in local country, or send Chinese Engineers to solve in 2 weeks. 6. Where can we get spare part? BOGDA: we choose International Brand that customer can find it in everywhere, such as Siemens, Omron, Delixi etc, or send parts by DHL, Fedex, TNT and other express.

---
