Sgo-HD1602X High Definition Video Microscope for Factory and Laboratory Made in China

Product Description

Product Description

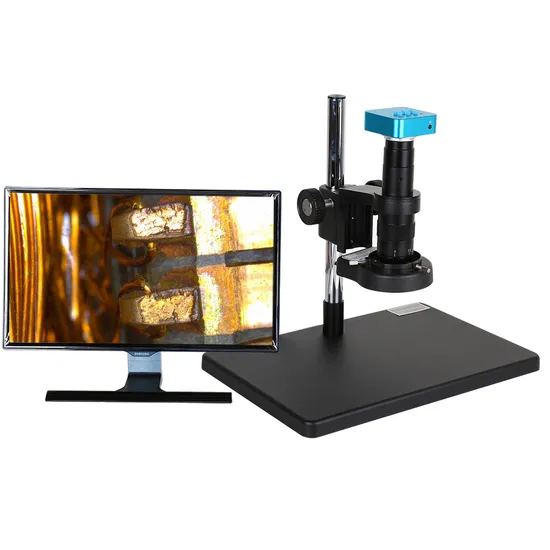

Full HD video microscope HD1602X
Video microscope HD1602X adopts the new HDMI high-definition digital transmission mode and is equipped with matching software. It has photo, video, and measurement functions. It can export reports to facilitate the retention of inspection reports. The microscope is directly connected to the monitor.
The digital microscope is a high-tech product successfully developed by perfectly combining cutting-edge optical microscope technology, advanced photoelectric conversion technology, and LCD screen technology. As a result, we can reproduce the research on the microscopic field from traditional ordinary binocular observation to the monitor, thereby improving work efficiency and reducing fatigue.

Optical system Specifications	Optical Len	5A
	Optical conversion ratio	1:6.4
	Ratio of the objective	0.7X-4.5X
	Camera eyepiece magnification	0.5X
	Optical ratio	0.35X-2.25X
	Video magnification	25X-170X
	Field of view	1.5*2.8-11*19mm
	Working distance	110mm
	Center distance	150mm
CCD System specifications	Sensor size	Hisilicon 1/3
	Pixel size	2.75um*2.75um
	Data bits	12BIT
	Exposure mode	Rolling shutter
	HDR	Tertiary enhanced
	SE	Third order edge enhancement
	White balance	Manual/Auto
	Focus mode	Manual
	Output frame rate	60fps
	Resolution ratio	HDMI
	Sensor size	Colors/black and white
	Pixel size	12V1A
Fixed bracket system specifications	Focus adjustment mirror frame	Coarse moving focus hand wheel, focus Lift 0-65mm
	Column bracket	Diameter 25*355mm
	Working platform	380*255*23mm
Lighting System Specifications	External light source	LED ring light,input voltage:AV100-240V wide voltage,Adjustable brightness
Video display system specifications	Screen size	21.5
	Screen ratio	16:9
Measurement functions	Picture format	BMP/JPG/PNG
	Saving mode	TF card

Detailed Photos

---
