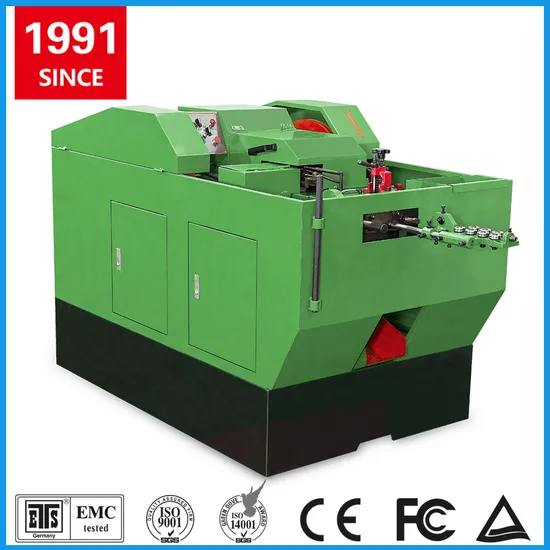

Aluminum Steel Semi Tubular Rivets Tail Hole Bolt Heading Making Machine

Product Description

Dongguan Arida Machinery Equipment Co., LTD, a company specializing in manufacturing fastener machines, is located in the hinterland of the Pearl River Delta, Zhaoqing Dawang Industrial Park, a national high-tech development zone, was founded in 1991. Which covers an area of 150 acres/ 100000 square meters and employs over 400.
After years of continuous development, we completed its transformation and upgrading in 2008, investing heavily in precision processing machines, providing reliability for manufacturing high-precision machine parts. High tech has hired management personnel with Taiwanese technology and trained a group of high-quality, skilled, and responsible technical personnel, striving to combine Japanese and Taiwanese technology to create several major series of products including:
1.6 stations cold head heading machines,
2.High speed multi station molding machines (2-die 2-blow, 3-die 3-blow, 4-die 4-blow, 5-die 5-blow etc.)
3.Multi variant molding machines (1-die 2-blow, 3-die 6 blow, 2 die-4 blow, 2-die 3-blow).
4.Riveting machine series.
5.High speed thread rolling machine series.
6.At the same time, non-standard cold forming machines can be produced according to customer requirements.
7. High speed press machines.
To ensure quality, the main parts of the machines are made of imported materials.
ARIDA's services are spread all over the world. Since its establishment, we have been striving for survival through quality and development through brand.Provide professional and timely after-sales service to customers.
Parameter Description:Tubular rivet heading machine series

No.	Model	The largest length (mm)	Max Screw Diameter (mm)	The main slide stroke (mm)	Main Motor (KW,Poles)	The oil pump (KW)	Productivity (Pcs/Min)	Weight (Ton)	Packing size L× W×H (m)
1	BH20100ST	100	Φ8	130	4/6	0.37	60-90	3	2.6×1.35×1.4
2	BH1560ST	80	Φ6	92	1.5/6	0.37	70-110	2	2.1×1.1×1.1
3	BH1040ST	40	Φ4.5	70	1.5/6	0.37	70-110	1.3	1.8x1x1.2
4	BH0518ST	18	Φ3	38	0.75/6	0.37	70-110	0.75	1.4×0.75×0.9

Parameter Description:Pop-rivet heading machine series

No.	Model	The largest length (mm)	Max Screw Diameter (mm)	The main slide stroke (mm)	Main Motor (KW,Poles)	The oil pump (KW)	Productivity (Pcs/Min)	Weight (Ton)	Packing size L× W×H (m)
1	BH1540B	40	Φ6	110	2.2/6	0.37	50-70	2	2.1×1.1×1.1
2	BH1530B	30	Φ6	92	2.2/6	0.37	60-80	2	2.1×1.1×1.1
3	BH1030B	30	Φ5	92	1.1/6	0.37	60-80	1.3	1.7x1x1
4	BH1020B	20	Φ5	62	1.1/6	0.37	80-100	1	1.7×0.95×0.9

(The price of the website platform is not the actual quotation, please contact us for the specific quotation according to your products and suitable machine models)

---
