Dp3200 High Speed Portable Metal Radial Drilling Machine

Product Description

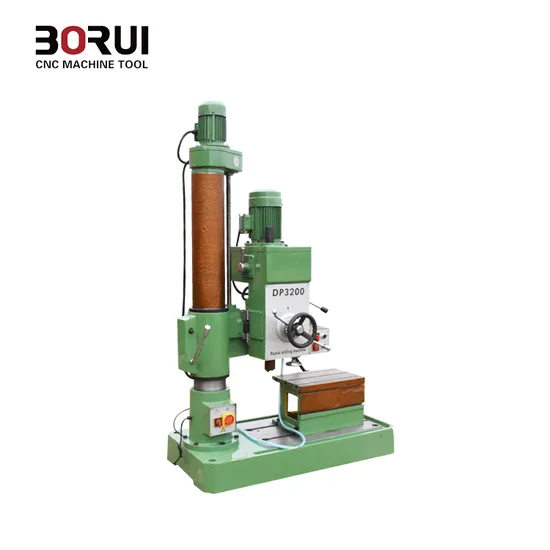

DP3200 High Speed Portable Metal Radial Drilling Machine

Product Application
Z3032*10 radial drilling machine is with extensive use of universal machine, suitable for in machinery manufacturing departments in the processing of small parts, drilling, reaming, reaming, countersink flat and tapping. In process equipment conditions, can also be used for boring.
The main specification:

Main Technical Parameters	Z3032×10
Max. Drilling Dia. (mm)	32
Distance from spindle nose to table surface (mm)	220-980
Distance between spindle axis and column surface (mm)	2600-1000
Spindle travel (mm)	120
Spindle taper (Mo type)	4
Spindle speeds range (r. p. m)	108/ 162/ 262/ 398/ 665/ 1000
Spindle speed step	6
Rocker rotary angle	360°
Main motor power (KW)	1.5-2.2
Movements motor power(KW)	0.75
Weight (KG)	800
Overall dimensions (mm)	1235×600×1780

Standard Accessories:
Mechanical transmission
Mechanical clamping
Automatic take-off and landing
Automatic speed
Optional Accessories:
Hydraulic clampin
Hydraulic transmission
Hydraulic pre-selection
Electricity clamping
Spindle position stop insurance
The main performance characteristics:
1. Mechanical transmission
2. Mechanical clamping
3. The guide surfaces are hardened, the gear adopts nitriding process, prolong the service life.
4. A hand rotating adjustment, tapping more convenient!
Product Details
Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
Company Information
Since 1996,20 years' history for machine tool manufacturing
10 years' history for export
Total 2 manufacturing bases in china
Sino-germany technology cooperation
Production of 8 categories, more than 130 kinds of products
Set up design&research center at TAIWAN
Exported to total 48 countries in the world covered most areas
One-stop shopping for nearly all other types' machine tools

1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.
Eunice Zhang

Sales Department

Tengzhou BoRui cnc machine Tool Co.,Ltd

---
