Air Conditioner Aluminum Case RoHS Certificated Cbb65 Sh Capacitor

Product Description

High Quality Cbb65 Air Conditioner Capacitor 250VAC 450VAC Polypropylene Film Capacitor 1-80uf

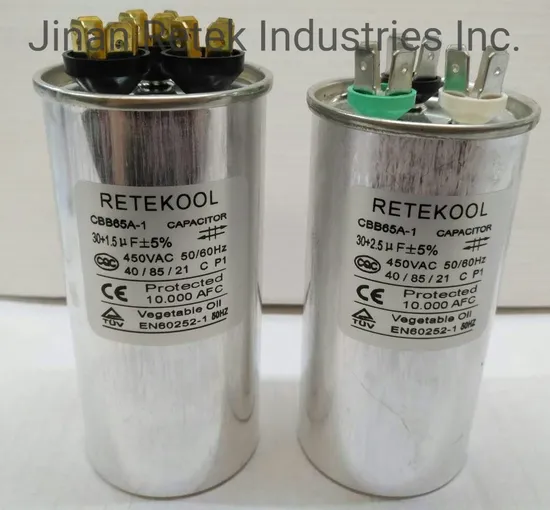

CBB65 Air conditioner Capacitors
JINAN RETEKOOL INC. is a professional manufacturer of capacitor. Our products passed the CQC,UL,C-UL,CE,TUV,VDE,CSA etc.. domestic and international certification, and get a lot nation patent.
Run starting in household electric appliances air conditioner,
refrigerator which demand 50/60Hz AC power supply Have
safe protection constrution.
Product Description Exchange Alumium Electrolytic Capacitor has the charactors of little capacitance change, stable performance, little current leaking, small tangent of wearing angle, durability, etc, is paplicable for the startup of AC motors.
Using Zn-Al thickened adge metallized polyproplene film as the medium tightly rolling by the high-speed winding machine in aluminum wrapper, Refind vegetable oil or capacitor wax impregnation teatment unde vacuum at elevated temperatures,making the performance stable,long-life spans.The second-generation mechanical ecplosion-proof design make higher reliabilty and security.
The main products are: The series of CBB60, CBB61, CBB65 AC motor capacitor, CBB66 of explosion proof type capacitor for metal halide lamp, CBB80 of power factor compensation capacitors for tubular fluorescent lamps and other discharge lamps, BCMJ of self healing low voltage shunt capacitor, AKMJ and BKMJ of filter capacitor, CBG of track circuit compensation capacitor, DC -link of metallized polypropylene film dielectric capacitors with DC support capacitors and other special capacitors.The capacitor is widely used in air conditioner , motor, water pump, fan motor, Microwave.
General specificaiton for capacitor:
1. General description:
Broadly applied to running of single-phase AC motors at 50Hz(60Hz)frequency for washedrs and high efficiency compressors of refrigerators etc.
2.Features:
The capacitor takes heavy-edge metallized, AI/Zn pp film or web-like fuse metallized pp film as dieledtrie, its components are assembled in flame-retardant ABS or PBT ey lindrical crust, impregnated with flame-retatdant epoxy resin,It has high reliability and stability.
3.Technical parameter
Standard:GB3667-1997,same as IEC60252:193
Climate type:40/70/21, 40/85/21
Capacitance tolerance: ±5%
Dielectric dissipation factor: tg&≤0.002(50Hz~100Hz)
Life expectancy:3000h(ClassC)or10000h(ClassB)
4.Service condition
Altitude:≤2000m
Residual voltage in application:Less than 10% of rated voltage
Allowed maximum voltage: Less than 1.1 times of rated voltage
Permissible maximum current: Less than 1.3 times of rated current
Item: UL cUL TUV VDE RoHS Approval CBB60 CBB61 CBB65 250v SH AC Motor Run Capacitor
Capacitance: 1 to 180uF
Capacitance tolerance: ±5% or ±10%
Working voltage: 250VAC,300VAC,350VAC,370VAC,400VAC,440VAC,450VAC,500VAC,600VAC
Temperature range: 25/70/21 or 40/85/21
Lead material: AMP 250 tin-plated brass QCs, lead wire(made by ourself,with UL,VDE approval) or cable
Outer shape: UL 94 V-O fire-retardant round or square plastic case or aluminum can and epoxy-resin sealed.
Label on capacitors: by laser print(our patent) or by transparent label.
OEM or ODM are welcome.
HS code: 85322590
Rated Voltage Range: 250VAC, 300VAC, 370VAC, 440VAC.
Rated capacitance Range: 3-100UF.
Dissipation Factor: Tan≤ . 002(50Hz)
Rated Tolerance Of Capacitance: ± 5%± 10%
Testing Voltage: Between leading-out ends: 1.75UR los no break down.
Insulation Resistance: Between leading-out ends≥ 3000M&Omega.

Technical features
Operating temperature	40/70/21,25/85/21
rated voltage	250-660VAC
rated capacitance	250VAC:1-120UF
	450VAC:1-100UF
Tolerance	±5%
Testing voltage	T-T:2.0·Un, 2S no breakdown
	T-C:2500VAC, 10S no breakdown
Insulation resistance	T-T:≥3000MΩ·UF
	T-T:≥1000MΩ
Loss tangent	tg≤0.001 (100Hz)
Safety class	P0,P2

Packaging: Exporting Standard Brown Carton Packing.
50pcs or 100pcs/inner box, 2 boxes or 4 boxes/carton.
Offer bulk packing, Individual box packing, use pallet. Or as your request.
Delivery Detail: 15 to 25 days, depends on your quantity

---
