US$0.10-10.00
|
1,000 Meters
(MOQ)
|
Basic Info.
Model NO.
3x240 NFC 33 226
Material Shape
Round Wire
Wire Core Material
Aluminum Conductor
Insulation Screen
with Powder Over It
Country Exported
West Africa:Togo,Cote Diva,etc
Transport Package
Wooden Drum or Wooden Steel Drum
Specification
1.1m drum or 2.2drum
Production Capacity
1000km Per Month
Product Description

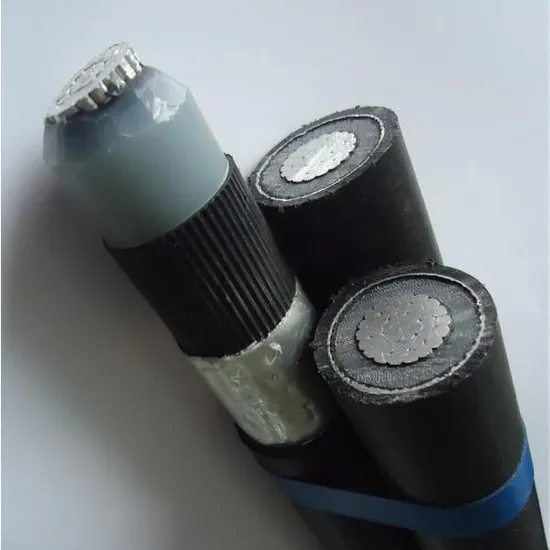

Câble HTA Torsadé Souterrain 18/30/36KV NFC 33 226 3×240 mm² Alu Câble HN33S26
Product Description
| DESCRIPTION |
| Utilisation |
| Le câble MT NFC 33-226 est destiné à la distribution publique moyenne tension HTA 12/20 kV. |
| Il peut être constitué de 1 ou 3 conducteurs de phase. |
| L'étanchéité longitudinale est assurée par une poudre gonflante. |
La technologie de sa fabrication permet de le poser sans protection mécanique supplémentaire. |
| |
| Norme : NF C 33 226, IEC 60502-2 |
Product Parameters
| N0 | Fiches Techniques | Unités | Données Spécifiques | Données du fabricant |
| 1 | Fabricant | | A indiquer | YIFANG ELECTRIC GROUP INC. |
| 2 | Norme | | CEI ou équiv. | IEC60502-2, NFC 33226 |
| 3 | Conducteur | | Alu | Alu |
| 4 | Isolation | | PR | PR(XLPE) |
| 5 | Souplesse | | Classe 2 | Classe 2 |
| 6 | Tension maximale | kV | 36 kV | 36 kV |
| 7 | Fréquence nominale | | 50 Hz | 50 Hz |
| 8 | Section | mm2 | 1x3x240 | 1x3x240 |
| 9 | Intensité régime permanent enterré à 20°C | A | 398 | 398 |
| 10 | Température max. âme | °C | 70 | 90 |
| 11 | Masse approximative | Kg/km | 5539 | 5539 |
| 12 | Chute de tension à cos phi = 0,8 | V/A/km | 0,33 | 0,33 |
| 13 | Marquage | | 18/30 à 36 kV C33 226 | 18/30 à 36 kV C33 226 |
| | 1x3x240 mm² Alu | 1x3x240 mm² Alu |
| | marquage métrique, la norme et | marquage métrique, la norme et |
| | CEET sur chaque conducteur à chaque 2 mètres. | CEET sur chaque conducteur à chaque 2 mètres. |
| 14 | Couleur | | Noir | Noir |
Detailed Photos
Company Profile Yifang Electric Group Inc. mainly specialized in wires&cables, including designment, production and sale.
Products are mainly covering low,medium,high voltage(1KV to 220KV) XLPE Insulated power cable,PVC insulated power cable,ABC cable,building cable control cable,rubber cable welding cable Etc.
Our XLPE cable can be manufactured according to the company's specification which is equivalent to IEC 60502,IEC60332,IEC60754. Some indexes are superior to above international standard.
Certifications
FAQ 1.Q:Are you a factory or trading company?
A: Manufacturing base in Henan ,China, with more than 500 workers.
2.Q:How can I visit there?
A: Sure,If you need,we will arrange the driver to pick you up.
3.Q:How can I get some samples?
A: Contact me on below,Determin sample and address for shipping.
4.Q:Have you ever supplied cables to our country?
A: Yifang Cables have been sold to over 100 countries and regions in the world. can you contact me for details.
5.Q:What is your MOQ?
A: MOQ Normally 500 meters for big diameter cables.Please contact me for detail info if you have specific cable requirement.
6. Q:When can I get the price?
A: Usually quote within 6 hours after we get your inquiry.
7.Q:How long is your delivery time?
A: According to your order's quantity.Usually our lead time is 3 - 20 working days.
>>
