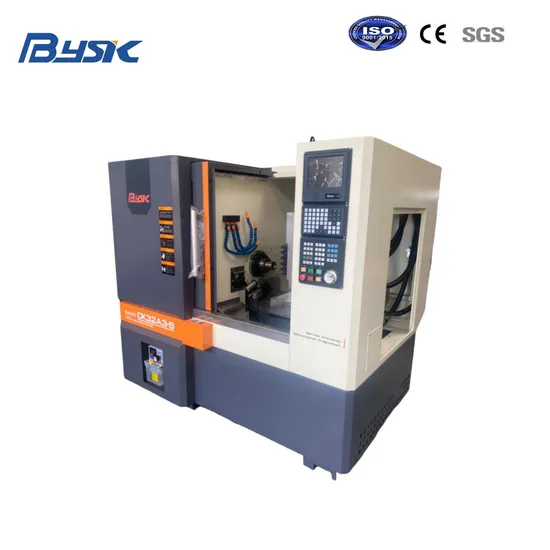

Full Automatic Machinery Ck32A3-S 3 Axis Gang Tooling CNC Lathe with Y-Axis

Product Description

Product Description
Full Automatic Machinery Ck32A3-S 3 Axis Gang Tooling CNC Lathe with Y-Axis
--CK32A3 is Multi-Functional Turning &Milling Composite Lathe
--CK32A3-S is based on CK32A3 plus Y-axis
--Suitable for processing diameter within 32mm
--Equipped with Y-axis , that is CK32A3-S
--Equipped with sub spindle, that is CK32A3-B
--Configurated with an automatic bar feeder it can realize full-automatic processing.
CK32A3 CK32A3-S
Some Suggestions
--Max profile diameter within 7mm, suggest model B07,CK1107. B07 is with dual spindle type, CK1107 is single spindle type.
--Max profile diameter within 13mm, suggest our model B13,CK1113.
--CK0620A2 particularly suitable for processing of complex-shaped parts such as linear/taper/arc threads, Configurated with center frame can process slender shaft parts.
--CK0625A is suitable processing of various precision parts such as instruments/meters/electronic connectors/optics/ automotive and motorcycle parts/small hardware.
--CK32A3 is multi-functional Turning&Milling CNC Lathe, CK32A3-B is with dual spindle based on CK32A3.
--X42 is slant-bed cnc lathe, suitable for processing of shaft/disc parts with complex/variety of sizes/high precision request.
--More details pls contact us, or send your drawings of profiles, we will give you profession recommendation.
Product Parameters
CK32A3-S Gang Tool CNC Lathe

Power	Rated voltage	Three-phase AC 380V
	Rated frequency	50HZ
	Total Input Power	7.5kW
CNC System	BYSK	YZ190
	Minimum Set Unit	0.001mm
	X Axis Pulse Equivalent	0.0005mm
	Z Axis Pulse Equivalent	0.001mm
	Max Programming Size	±9999.999
	Cutting Speed	1--4000mm/min
	X Axis Rapid Feed Speed	20000mm/min
	Z Axis Rapid Feed Speed	20000mm/min
Main Spindle	Maximum Bar Diameter	Φ32mm
	Main Spindle Through-hole Diameter	Φ33mm
	Max Rotating Diameter	Φ400mm
	Main Spindle Center Height from Ground	1000mm
	Main Spindle Speed	0-4000r/min
	Main Spindle Motor Power	4kW/5kW
Travel	X Axis Travel	600mm(Diameter)
	Z Axis Travel	300mm
	X Axis Servo Motor Power	1.3kW
	Z Axis Servo Motor Power	1.3kW
	Guide Rail Form	Linear Guide Rail

Cooling System	Cutting Oil Motor Power	0.18kW
	Cooling Box Capacity	100L
Lubrication System	Motor Power	35W
	Capacity	2L
Gang Tools System	T notch 20*20(4pcs)	T notchΦ20(2pcs)
Hydraulic System	Hydraulic Motor Power	0.75kW
	Pressure Value	3.0Mpa
Machine Size	Length * Width * Height	1820*1520*1860
	Machine Weight	1990Kg

CK32A3-S Configurations
Item	Specification	Origins
System	YZ190	Baoyu BYSK
Main Spindle	32 Main Spindle Unit	Baoyu BYSK
Main Spindle Motor	Optional
X Axis Motor	1.3kW Absolute Value Servo Motor	Inovance+ Lines
Z Axis Motor	1.3kW Absolute Value Servo Motor	Inovance+ Lines
X Axis Screw Rod	537*2510	Taiwan Joint Venture
Z Axis Screw Rod	670*3210	Taiwan Joint Venture
X Axis Guide Rail	HGH30	Taiwan HIWIN/PMI/THK
Z Axis Guide Rail	HGH30	Taiwan HIWIN/PMI/THK

Optional Configurations
Y Axis Multifuctional Power Head Tool Holder
Power Head	End Face	4pcs
	Side	4pcs
	Power	End face0.75kW+Side2kW
	Rotate Speed	4000r/min
	Chuck	ER16
Gang Tools	16*16Square+∮20Hole	5pcs+4pcs

Detailed Photos
THE DIFFERENCE OF CK32A3,CK32A3-S,CK32A3-B
CK32A3 Multi-Functional Turning Milling Composite Lathe
Live tool (optional) ER20
Live tool servo motor power 0.75kW
Precision C-axis indexing,power head meets the needs of turning& milling.
High cost performance

CK32A3-S Multi-Function Turning&Milling Lathe With Y-axis
End-face Live tool 4pcs ER16
Live tool servo motor power 0.75kW
Side live tool 4pcs ER16
Live tool servo motor power 2kW
Unit spindle structure, more stable rotation
The standard A2-4 spindle nose ,can be used for spring collets or hydraulic chucks
Dovetail and T-notch press tool holder can move back and forth, left and right, and tools arrangement is more flexible

CK32A3-B Multi-Function Turning Milling Lathe With Sub Spindle
Diameter of sub spindle through hole 20mm
Sub spindle servo motor power 2kW
Max speed of sub spindle 4000r/min
The high-speed rotation and timing docking of the main spindle and sub spindle,It's solves the problem of secondary operation of workpiece processing under one setup
A sub spindle's tool base and a parting tool base are added on the side of spindle headstock.

ABOUT THE BODY MATERIALS
ABOUT THE INNER STURCTURE
CNC System YZ190 Electric Cabinet Driver Cabinet
WITH CONFIGURATIONS

CK32A3-S CNC Lathe will configurated with oil film bar feeder, with high-pressure oil pump,oil mist machine, to improve the performance of lathe,extend the life of lathe
Processed Product Display
Pls contact us and send your drawings for accomendation of our suitable cnc machine
Company Profile
Packaging & Shipping
FAQ
1. Do you accept OEM/ODM?
Reply: Yes. OEM/ODM are welcomed.
2.How many years of production experience does your company have?
R: Over 10 years,We have several professional and experienced technical instructors to guide you for after-sales.
3. Is it possible to deliver quickly (or how many days is the delivery guaranteed, the delivery deadline)?
R: Yes, in common condition , lead time about 30- 45 work days
4.What are the after-sales services?
R: We have professional technical team, can solve your problem 24 hours online.
5. Does this product accept customized services? What specific aspects can be customized? (Such as color, shape, size, etc.;)
R: Yes , customized service is workable , like print your company logo etc.
6. Do you accept small quantity orders (or what is the minimum order quantity, etc.)?
R: Yes, 1 set machine also be available.
7. What are the characteristics of the material of this product?
R: High quality gray cast iron with CE Certificate.
8. What are the unique functions and features of this product?
R: Comparable to European quality Swiss type cnc lathe machine, With high cost-effective, and obtained multiple domestic certifications in China, in addition, As an independent production enterprisewe have ourself technical research team.
9. What are the application areas or uses of this product?
R: Widely appled in Communication Equipments,Connectors, 5G Products, Mobile Phones, Household Applications, War Industry, Spaceflight, Medical Devices, Car, Water Heating, Miniature Shaft, Optical Instrument, Timepiece, Glasses and various hardware accessories.
10. Is it in stock? Can it be wholesaled?
R: Some models have, need confirm
11. Are there any second-hand products for sale?
R: No,sorry
12. What cnc system you use?
R: Our cnc operate system is the BYSK190, this is our company's own brand, and has always been popular in the market because of its easy operation and comprehensive functions, in addition, LNC system also be optional.
13. Are you factory ? and where is your factory located ? How can i have a visit there ?
R: Yes it is. Our company is located at Jianshe Road No.1, Economical District, Guangde,Xuancheng City,Anhui Pronvince. You are warmly welcomed to visit us.

---
