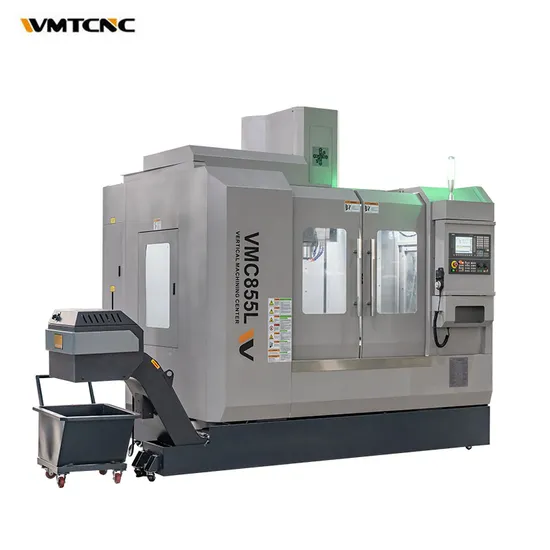

WMTCNC vertical machining center VMC855L cnc machine centers

Product Description

Product Description
WMTCNC vertical machining center VMC855L cnc machining centers main features: 1. Robust construction for efficient machining.
2. Integrated coolant system.
3. Chip conveyor and purge system foroptimum chip removal.
4. Easy accessibility of work table for easy setup and tooling.
5. Enclosed work space ensures safe and contamination-free work.

Specification	VMC855L
Worktable
Worktable size (L×W)	1000×550mm
T-slots size (N×W×D)	5-18x90mm
Travel
X/Y/Z axis travel	800/550/500mm
Machining range
Distance from spindle center to column	595mm
Distance from spindle nose to worktable surface	120-670mm
Spindle
Spindle taper	BT40
Spindle power	7.5kw
Max. spindle speed	8000rpm
Feed
Max. feed speed	10m/min
Rapid feed speed (X/Y/Z)	24/24/20m/min
Ball screw (diameter+lead)
X/Y/Z axis ball screw	4016
Tool magazine
Tool magazine capacity	24T
Max. length of tool	300mm
Tool change time	1.5s
Positioning accuracy (National standard)
Positioning accuracy (X/Y/Z)	±0.005mm
Re-positioning accuracy(X/Y/Z)	±0.003mm
Machine dimension
L×W×H	2800×2300×2300mm
Machine weight
Max. loading of worktable	600kg
Machine weight	5500kg

Detailed Images
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.

---
