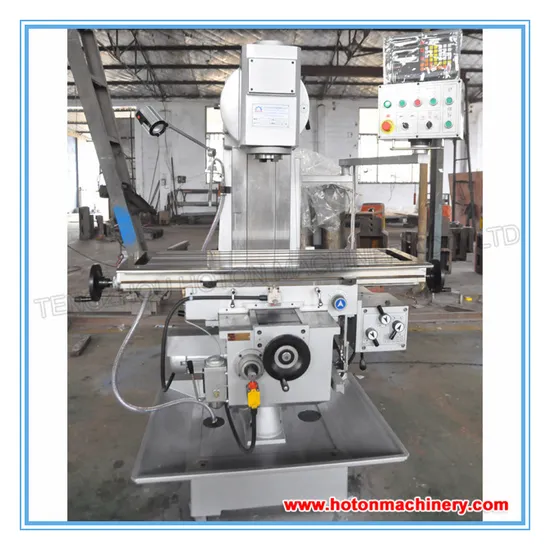

Vertical Milling Machine with CE Approved (Vertical Mill Machine XL5036A XL5036B)

Product Description

VERTICAL LIFTING MILLING MACHINE FEATURES:
X5036B Vertical lifting milling machine is a universal metal-cutting machine tool. Its spindle taper hole can be installed directly or by attachment with variety of cylindrical knife, molding knife, end miller, angle miller and other cutting tools. It is applied for process the plane, bevel, groove, hole of various parts. It is the ideal equipment in many professions, such as Machinery, Molds, Instruments, Meters, Automobiles, Motorcycles, etc.
Characteristics:
A. Spindle sleeve can be manually micro-feeding, and set limit device, milling head can be adjusting rotation 45 ° Counter-clockwise.
B. Table can be manual feeding vertically or horizontally, and the table can lift vertically. At the same time, vertical and horizontal mobility can also achieve fast-forward, mobile to mobile feeding and vertical movements;
C. Adopt 1200mm extended slider, and 1500mm length work-table, the longitudinal travel of table up to 1000mm, has strong stability.
D. The main transmission and feeding are used gear speed change mechanism; It has 12 classes different speed, so the range of speed adjustment is widely.
E. Spindle bearing with tapered roller bearings, bearing capability, and using dynamic braking, with a big braking torque, stop quickly, braking reliable.
F. Good stability with rectangular guide.
G. After super audio quenching, the table and guide have stronger intensity.
SPECIFICATIONS:

ITEM	UNIT	X5036B
Spindle Taper		7:24 ISO50
Distance from spindle end to work-table	mm	70-450
Distance from spindle tovertical guide surface	mm	360
Range of spindle speed	r/min	60-1690(12class)
Rotation angle of vertical milling head		±45°
Table size	mm	1500×360
Table stroke(longitudinal /Horizontal/Vertical)	mm	1000/320/380
Table longitudinal / Horizontal feed speed	mm/min	15-370(8class)540(fast)
Table vertical lifting speed	mm/min	590
Table T-slot number / width / distance	mm	3/18/80
Power of main driving motor	kW	4
Power of table feeding motor	W	750
Power of table lifting feed motor	W	1100
Power of cooling pump motor	W	90
Cooling pump flow	L/Min	25
Net/Gross Weight	kg	2230/2400
Overall Dimension	mm	2380×1790×2100

Contact Us:

Andy Wang TENGZHOU HOTON MACHINERY CO.,LTD Tel:0086 632 5633796 MP:0086 13506328892 hotonmachinery.en.made-in-china.com

Company Profile:

Tengzhou Hoton Machinery Co.,LTD was established in 2006, and is the professional machine manufacturer in China. There are 480 workers, of whom 60 are engineers. It has an area of 46,000 square meter, general assets 30,000,000. It has a store of 350 equipments and the good ability of products design & manufacturing. It has export quality permit from 2007, and has export right given by the State Foreign Economic Trade Committee in 2008.

The leading products: "Hoton" series of CNC machines, Lathes, Milling machines, Drilling machines,Grinding machines, Saws, Sheet metal machines, Metal forming machines, and other machine accessories.Some products have national patent.It has fourteen series, over eighty models by itself. It has the ability of making 100,000 sets every year. All the products are designed perfectly and has high quality high performance and low price, and the excellent quality guarantee system. The products have past ISO9001 and CE certification since 2009. The products have been export to five continents, over forty countries and areas. It resulted to the attraction of client abroad and home, the quickly promotion of products sale.

Tengzhou Hoton Machinery Co.,Ltd. is willing to make common progress and developments with all the customers. Quality first,Constantly perfecting skills.

---
