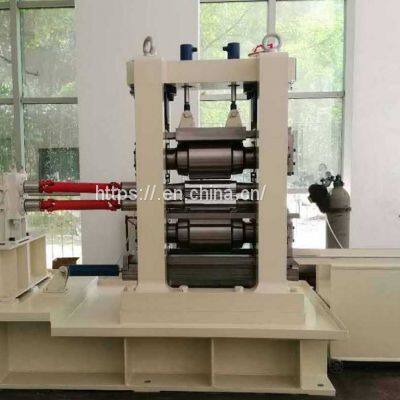

Stainless steel narrow strip 4 high mill
This 4 high mill unit is for cold rolling precision stainless steel strip, maximum width 650mm and minimum gauge 0.18mm. The unit is of 4 High roll system and reversible type.
Specification of Stainless steel 4 high mill:
Material: Stainless Steel 304,201 etc.
Input spec: 2.0- 3.0×650mm,
Output spec: 0.18～1.0×650mm
Sleeve diameter: Ø500
Coil diameter: max. Ø1700mm
Coil weight: max.10000kg
Rolling force: max. 1000T
Rolling speed: max. 240m∕min
Winding tension: max. 130kN
Composition of Stainless steel 4 high mill:
Load car 1 set
Payoff roll 1 set
Feeding platform 1 set
4hi mill 1 set
Roll changing device (support roll) 1 set
Discharging platform 1 set
Tension Roll 2 sets
Electric control system 1 set
Thin oil station 1 set
General hydraulic station 1 set
AGC hydraulic station 1 set
Process lubrication station 1 set
Thickness gauge 2 sets
Scope of GLIMPSE TECHNOLOGY
1) Design of the complete set of equipment for the 750 Type reversible 4 high mill unit including electric equipment, automatic instruments, mechanical equipment, layout, tools and dies (Rolls, shear, etc..)
2) Manufacture or supply of mechanical equipment, electric equipment, operation platform, hydraulic system, control system, instruments, lubrication system, etc.
3) Supervision services of installation of 750 Type reversible 4 high mill unit;
4) Relative technical documents of 750 Type reversible 4 high mill unit.
Keywords: 4 high mill, 4 hi mill, 4hi mill, stainless steel mill
>>
