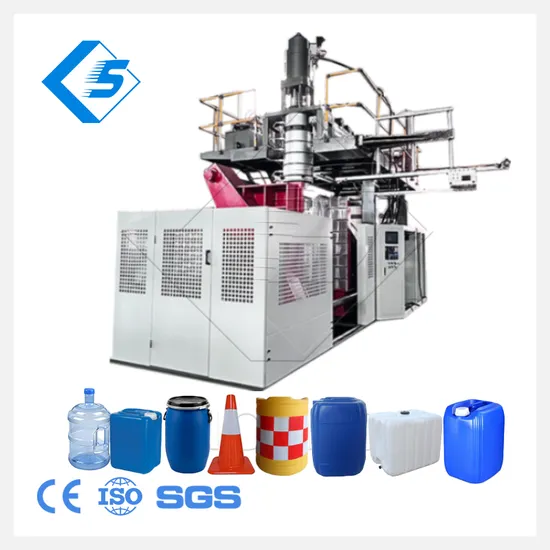

20L 25L 30L 50L 60L HDPE Plastic Jerry Can Tank Container Barrel Extrusion Blowing Mould Small Blow Molding Making Machine 50L

Product Description

20L 25L 30L 50L 60L HDPE Plastic Jerry Can Tank Container Barrel Extrusion Blowing Mould Blow Molding Making Machine
Product Description
Advantages:
1. The temperature controlled by seimens PLC, the extruder stops automatically if the temperature is down because of heater or thermocouples damaged.
2. There is die head pressure testing in the diehead. The PLC shots down the extruders if the pressure inside the die head is too high.
3. The extruders have covers for keeping the temperature, so can make the heating time short
4. The temperature are controled by seimens brand.
5. The extrusion motor is seimens brand.
6. The inverter is seimens brand.
7. More protection in control system.
Product Parameters

Technical Specification
Specifications		STD-80 series	STD-90 series
Material		PP PE ABS	PP PE ABS
Max. Container capacity	L	30	60
Output (dry cycle)	Pc/hr	360	360
Machine diameter(L*W*H)	M	4.7*2.6*4	5.7*2.6*4
Total weight	T	12	13
Clamping system
Clamping force	KN	200	300
Platen opening stroke	mm	350-850	450-1050
Platen size(W*H)	mm	750*860	960*980
Max.mold size(W*H)	mm	520*1000	700*1200
Mold thickness	mm	360-420	460-600
Power
Max. drive	KW	67	74
Total power	KW	82	89
Fan power for screw	KW	0.5	0.5
Air pressure	Mpa	1	1
Air consumption	m³/min	0.8	0.8
Average energy consumption	KW	38	40
Extruder system
Screw diameter	mm	80	90
Screw L/D radio	L/D	24	24
Melting capacity	Kg/hr	120	130
Number of heating zone	Zone	4	4
Extruder heating power	KW	21.4	21.4
Extruder driving power	KW	30	37
Accumulator head
Number of heating zone	Zone	4	4
Power of die heating	KW	21.3	21.3
Max.die-pin diameter	mm	250	350
Accumulator capacity	L	5	6.6

Application

Detailed Photos
Total Machine Control System
1.The control system is simple but humanized pages easy for operation.
2.100 point parison thickness controller & profile eddition.
3. Production technics and parameter saving for 20 moulds.
4. Professional engineer setting pages for problem diagnosis.
5.Short-cut key board & emergency stop for safety production.
6. Aluminum cantilever operation box and easy adjustment.
7. Remote technical support & program updating.
Die head system
1. Accumulator die head.
2. Temperature control: automatic temperature control module.
3. The max die pin of extrusion is 600mm.
Mould Platen
1. Latest Euro style toggle type clamping system.
2. Bigger platen size capable to carriage more bigger moulds.
3. Stronger clamping force can make the blow molding item bottle joint line finishing smoother.
Automatic Labor Arm
1. It is a necessary parts for blow molding machine to ensure the workers operation safe.
2. Labor saving, easy operation, high production efficiency.
Drum Mould
1. Reasonable cold water runner design for heat transmission.
2. Cutting blade length& flatness for scraps easy removing.
3. Parison over-flow groove depth equal to product weight.
4. Suitable water inlet& outlet position for easy production.
5. precise cold shrinkage calculation to insure filling volume.
6. Multi-functional selection for mould action requirements.
Blowing System
1. Bowing stand adapt to YUKEN, direction valve, using hydraylic drive.
2. Blow rod can optional equipped quick exhaust function.
3.Match non-contact induction switch, ensure accuracy of positioning.
4. Optional air rotating rod, in order to machining tntenal thread.
5. Optional equipped with widen guide rod(wait water cooling), widen the parison.
Extrusion System
1. Screw designed specially based on working quality of material. Diameter of screw: φ120mm, L/D30/1
2. Material of screw: High quality nitriding steel 38CrMoAlA, with nitriding surface HV≥800, brittleness≤2.
3. Material of barrel: High quality nitriding steel 38CrMoAlA, with nitriding surface HV ≥ 900, brittleness ≤2.
4. Drive mode:AC motor + Hard gear surface decelerator.

Air Cooling Fan
1. Air cooling fan guaranteed constant temperature for screw.
Gear Box
1. Frequency conversion speed regulation& Alloy steel hardened gear box.
2. Table speed regulation, energy saving, low noise, durable.
Hydraulic system
1. The main hydraulic system adopts to Japan YUKEN and SUMITOMO hydraulic valves and servo pump, precise pressure of proportion, flow control, quick actions, longer working life.
2. Hydraulic motor available to upgrade to servo drive energy saving, low noise& increase working life of hydraulic units.

Electric control system
1. Japan Mitsubishi PLC system, with Mitsubishi temperature control module.
2. Weinview Touch Screen to easily set and change communication, parameter, image display with
self-diagnose.
3. Japan Mitsubishi inverter provide stable and efficient extruding process.
4. Other main electrical components are from wolrd-famous brands such as OMRON, LG and etc.

Workshop Production
Company Profile


FAQ:
Q: Can we visit your factory?
Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong International Airport. We can pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video. Q: How can we get the exact price of plastic machine? Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with quotation. Q: Do you provide any spare parts with machine? Yes, we offer all necessary spare parts before shipment.(contact us for packing list ) Q: How about your after-sale service ? We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist. Q: What is the lead time? For customized machine, it takes about 45-60 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.) Q: What is the warranty period for your machine ? 12 months warranty for components and technical support . Q: Do you provide custom machines? Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs. Q: How can we install the machine when it arrives? We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees. Q: What's the advantage of SINOTECH? We provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.

---
