Factory High Cost Performance Herbal Fruit and Vegetable Industrial Food Meat Wood Noodles Incense Seafood Fish Dryer

Product Description

Factory high cost performance Herbal fruit and vegetable industrial food meat wood noodles incense seafood fish dryer
Product Description
Product Description:

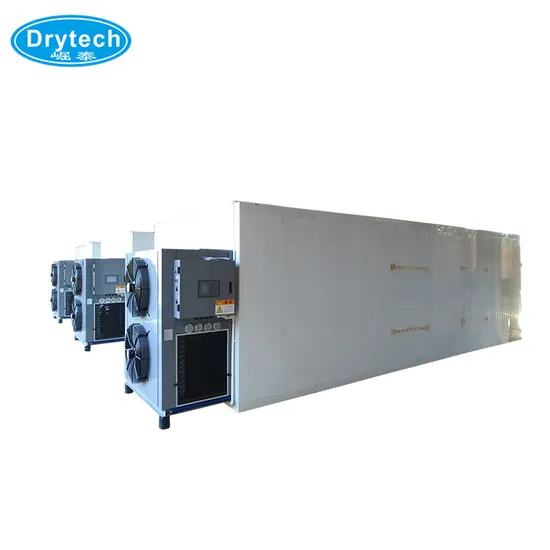

What Are DRYTECH Heat Pump Drying Machine?
DRYTECH Heat Pump Drying Machine takes advantage of the reversed Carnot principle, absorbing the heat from around and sending the heat to the materials which will be dried. This kind of dryer is mainly composed of heat pump dryer and drying chamber. This dryer will be controlled by touch screen controller, and the temperature can be adjusted. It has low electric consumption.
Working Principle:
Factory high cost performance Herbal fruit and vegetable industrial food meat wood noodles incense seafood fish dryer
No MOQ and Customized limitd
Drying+Dehumidify+Cooling Function
PLC+Touch Screem Control
7-10 Day delivery time
Product Parameters

Drying machine capacity
Model	Power Supply	Power Input (KW)	Chamber Size	Trolleys Q'ty	Trays Q'ty	Capacity	Remarks
DT100H	220V/1PH, 50/60HZ	3	L1655xW1585xH1500mm	1 trolley	36	100kg / batch	Trolleys size: L1280x810x1300mm
DT300H	220V/1PH, 50/60HZ 380V/3PH, 50/60HZ	5.5	L3200xW2190xH2200mm	6 trolleys	96	300kg / batch	Trolleys size: L870xW610xH1750mm 1 trolley with 16 trays Trays size: L800xW600xH50mm
DT300HD		11	L7050xW2190xH2200mm	16 trolleys	256	1200kg / batch
DT600H	380V/3PH/50HZ 460-480V/3PH/60HZ	9.5	L6150xW2190xH2200mm	12 trolleys	192	600kg / batch
DT600HD		19.8	L10100xW2190xH2200mm	24 trolleys	384	1500kg / batch
DT1200H		19.4	L6350xW3230xH2200mm	20 trolleys	320	1300kg / batch
DT1200HD		40	L11860xW3230xH2200mm	40 trolleys	640	3500kg / batch
DT1500HD		43.6	L12470xW4670xH2200mm	72 trolleys	1152	5000kg / batch

Our project

Company Profile

Cooperation:
Processing
Production Processing:
Main components:
Packaging & Shipping

FAQ

Usually There is three working mode only
Drying; Drying + dehumidify; Cooling
Drying: temperature can rise fast, but dryer cannot discharge moisture air
Drying + dehumidify: chamber temperature rise and discharge moisture air
Cooling: temperature can down to 10c(minimum)
Sometimes, if the dryer cannot control the temperature accurately, please choose Temper + humidity

Drying machine FAQ
1. high pressure protection
A. hot air circulating fans does not working
a1. AC contactor use for hot air circulating fans overloading protection(please check power source whether lack phase/connecting port or voltage not stable)
a2. part of hot air circulating fan not working(check whether the fans have many ON/OFF switch or some fans was burned)
a3. Fan was damaged (replace new fan or uninstall damaged fans)
B.Too much more products on trays or too much more trays on trolleys lead to block hot air (hot air cannot circulating in drying chamber or too slow wind speed, usually two tray's distance at 8-10cm is reasonable).
C. electronic expansion valve throttle opening too small; or jammed.
c1. Controller adjust electronic expansion valve's opening to small automatically(temperature sensor not accurate-change installation place, exchange 1# and 2# sensor's position)
c2. electronic expansion valve does not working(turn valve body)
D. chamber's temperature too high(set lower temperature)
E. refrigerant is not high temperature type, re-fill gas.
2. low pressure protection
A. leak gas(check leak point, repair)
B. weather too cold(expand check time for low pressure protection, or charge low temperature gas, e.g. R22/R417A)
C. electronic expansion valve opening too small(adjust bigger)
3. exhaust temperature too high protection
A. leak gas(check leak point, repair),
B.electronic expansion valve does not working(turn valve body).
4. temperature sensor error(replace new one)
5. discharge moisture too slow or does not discharge moisture A. dehumidify fan was damaged, B. controller go wrong, C. dehumidify fan power

After Sales Service
Our service:
A. Payment Service
1, T/T
2, L/C (for container order only)
3, Western Union, (for sample order & parts)
B. Technical service
1, We calculate the capacity and recommend the best models.
2, We supply you the professional refrigeration technical support and electronic technical support for your installation, debugging and operation.
3, We supply the spare parts and technical support in & after the warranty time.
4, We supply the training course to your workers at our factory if you need.
C. After-sales service
1, Technical support for your installation, operation and maintenance.
2, One year's warranty, and you can pay for extended warranty.
3, Spare parts and technical support at most economic prices after the warranty

---
