Customizable Low Power Infrared SF6 Gas Trace Leakage Detector

Product Description

Customizable Low Power Infrared SF6 Gas Trace Leakage Detector ZXSF-1D SF6 Gas Leak Detector is with high sensitivity, good stability, high speed, easy operation and large moving range. It rapidly detect SF6 breaker, GIS leakage point and yearly leakage rate qualitatively and quantitatively. It's a good device suitable for power supply department, installation and overhaul unit, power test institute.
Technical Indicators

Item		Indicators
Measuring range		0 ~ 999.9PPM
Accuracy		1PPM (0 ~ 50PPM inside)
Resolution		0.1ppm
Repeatability		± 0.1PPM
Gas flow rate		adjusted automatically
Probe protection		stainless steel sintered filter
Operating voltage		110 ~ 220VAC, AC and DC
Storage Temperature rating		-25 ~ + 70 ºC
Operating environment: Temperature		-25 ~ + 60 ºC
Lithium battery, AC/DC dual-use, automatic switching, protection against over-charging and over-discharging
Volume and weight		372*266.5*134.5 (mm), 3.5kg

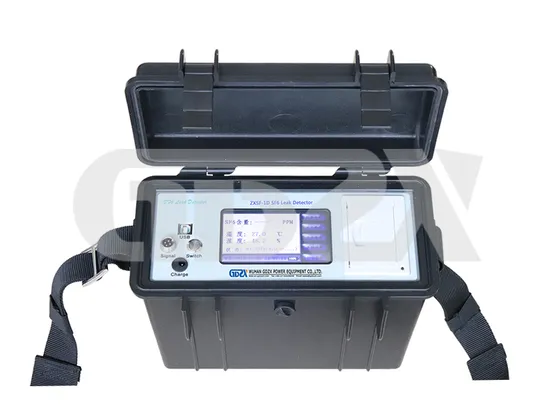

Product picture
Device display

About GDZX
Wuhan GDZX Power Equipment Co.,Ltd.is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.
Shipping and packaging Features1. 4.3" TFT touch screen design
2. 32-bit ARM MCU
3. Separately designed air way and circuit
4. Digital display of battery electric quantity
5. Good repeatability, high response speed
6. Automatic calibration of gradient
7. Color LCD display
8. Advanced probe protection function
9. Anti-pollution, anti-disturbance
10. High sensitivity, good stability
11. Small, beautiful, easy to carry

---
