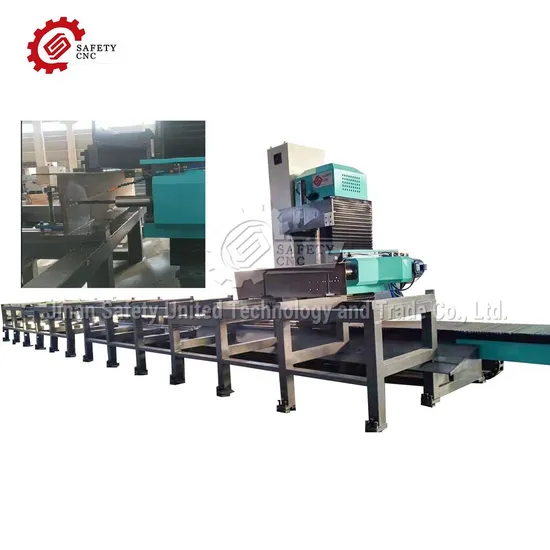

Intelligent Control Customized DB12070 Horizontal Single Spindle H Beam Drilling Machine
Product Description
Application:
This machine is suitable to the drilling of U-shaped steel beams, channel steel, rectangular pipes, steel plates, steel rails, and round pipes in the production field of building structural steel structures.
Component:
This machine is composed of rack, moving slide, power head slide, high-speed drill, electrical system, automatic lubrication system, cooling device and other parts.
Features:
1.The machine is equipped with a fixed workbench and a moving power head. The worktable and frame are of welded steel structure, which can withstand internal stress through artificial aging to ensure long-term high accuracy of machine tool processing. The horizontal and vertical positioning cylinders are located on the worktable plane for clamping and positioning the workpiece.
2.Horizontal movement axis-X is driven by servo motors, gear and rack, as well linear guide pair. The maximum speed of X-axis can reach 10m/min, and the maximum speed of other CNC axes can reach 8m/min.
3.Vertical movement axis-Y is driven by servo motors, gear and rack, as well linear guide pair.
4.The workpiece is placed within the machining range of the machine tool with a long and wide bearing plane, without tool adjustment.
5.The electrical control system of this machine adopts China's "KND CNC" system, and the whole processing process adopts CNC automatic control. LCD, convenient operation interface, man-machine dialog box, error compensation, multi-axis interpolation, breakpoint memory, automatic alarm, real-time monitoring, remote diagnosis and other functions, and equipped with RS-232 and Ethernet network interface
6.The programming is simple, and the machine tool is equipped with computer software independently developed by our company. The software is fully compatible with Windows XP and higher versions, which greatly improves the automation of workpiece processing, realizes the automatic conversion of CAD/CAM programs (realizes the direct conversion of computer drawings and workpiece processing programs), and eliminates the need for manual programming and complex input.
Product Parameters

Model		DB12070
The processing size (L*W*H)mm		12000x400x700
Working table	Size of working table(LXW)mm	14000mmx600mm
	Loading weight	2T/m2
	Method of fixing workpiece	T-shape groove
	Clamping method	Push with cylinder and fix it manually
Drilling head	Quan. Of spindle	1
	Spindle tapper	Morse- #4
	Speed of spindle motor	30-610rpm
	Max. Drilling diameter	¢50mm
	Spindle power	7.5KW
Drill bit in longitudinal direction(Axis-X)	Max. stroke	12000mm
	Маx, running speed	10m/min
	Spindle power	3.5KW
Drill bit in up-down direction(Axis-Y)	Max. stroke	700mm
	Маx, running speed	8m/min
	Spindle power	2.5KW
Drill bit in horizontal direction(Axis- Z)	Max. stroke	400mm
	Маx, running speed	0-10 m/min
	Spindle power	2.5KW
Positioning accuracy	X.Y.Z	≤0.04mm/1000mm
Repeat positioning accuracy	X.Y,Z	≤0.02mm/1000mm
Remove chip	Chip removal device	Chain plate type
	Quan. Chip removal device	1
	Chip removal speed	1 m/min.
	Power of motor	0,75 кВт
Cooling system	Power of motor	1.5KW
	Volume of flow	60L/min
Lubricating system	Feeding pressure	0.2MPa
	Quan. Of lubrication	0.1ml
Control system	CNC system	KND1000
	Quan. CNC	3
Total Power		≈ 18KW
Dimension	L×W×H(mm)	15000x1500x2500
Weight of machine		≈ 12T
