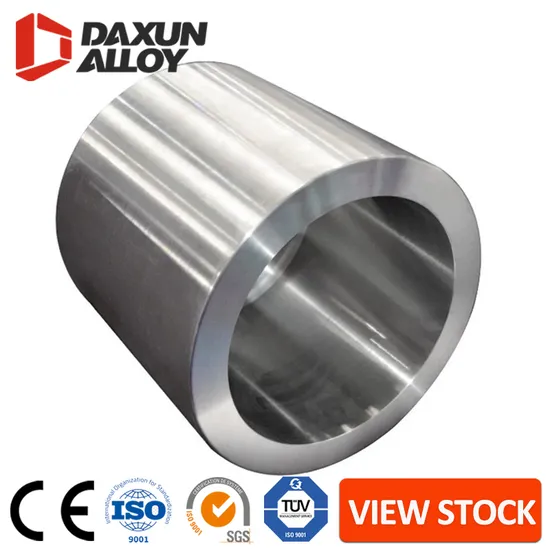

High Strength ASTM 6al4V Wear Resistant Rolled Titanium Rings Gr2 Gr5 Ti6al4V Titanium Rolled Ring

Product Description

Product Parameters

Titanium Ring Type	Rolled titanium ring, forged titanium ring
Grade	GR1,GR2,GR3,GR4,GR5,Ti6Al4V
Titanium ring diameter	φ100mm-2000mm
Titanium ring thickness	10-200mm
standard	ASTM GB GJB ASME AMS AMBS
Titanium ring process	Hot rolling/cold rolling/forging

Detailed Photos
Titanium Rolled rings and Forged Titanium RingDaxun produces titanium rolled rings with diameters from 300 to 3500 mm, weights up to 4000 kg and heights up to 800 mm.To ensure that the ring geometry meets the customer's requirements, the product is straightened and sized on a horizontal press.Titanium rings can have rectangular or shaped cross-sections, and the profile can be symmetrical or asymmetrical.Daxun supplies the wind power market with titanium ring devices as well as other titanium ring products for nuclear, coal-fired, renewable energy and combined cycle applications.
Daxun Titanium Rolled rings and Forged Titanium RingDaxun titanium rings are supplied in hot rolled, forged, heat treated and machined forms. After machining, the disks require additional acid etching to ensure a marketable appearance. Titanium seamless rolled rings are used in aerospace, marine and heavy engineering applications.
Daxun has passed ISO9001:2015 certification. The testing laboratory is UKAS accredited. Approved bodies include: Aérospatiale, ASEA-ATOM, British Nuclear Fuels plc, DCAN, Fiat Aviazione SpA, MTU GmbH, SNECMA, Statoil and VdTÜV.
Daxun Titanium Rolling Ring Manufacturing CapacityWith vertical and horizontal presses ranging from 12,000 tons to 35,000 tons, Daxun has the most comprehensive rolling ring manufacturing capabilities in the world. Our capabilities enable us to manufacture large diameter titanium rings.
Forming capabilities include state-of-the-art extrusion equipment and cold working assets for manufacturing rolled titanium ring and forged titanium ring products, one of the largest rolling mills in the world, and a unique hydroforming process for manufacturing accessories.
About the chemical composition of(Ti 6AL-4V) grade 5 Titanium rolled rings

Chemical Composition:
Symbol	Element	Min %	Max %
Al	Aluminum	5.50%	6.75%
V	Vanadium	3.50%	4.50%
Fe	Iron		0.30%
O	Oxygen		0.20%
C	Carbon		0.08%
N	Nitrogen		0.05%
H	Hydrogen		0.01%
Y	Yttrium		0.01%
	Other, each		0.10%
	Other, total		0.40%
Ti	Titanium		Remainder

About the mechanical properties of(Ti 6AL-4V) grade 5 Titanium rolled rings

Physical Properties	Metric	English	Comments
Density	4.43 g/cc	0.16 lb/in³
Mechanical Properties
Hardness, Brinell	334	334	Estimated from Rockwell C.
Hardness, Knoop	363	363	Estimated from Rockwell C.
Hardness, Rockwell C	36	36
Hardness, Vickers	349	349	Estimated from Rockwell C.
Tensile strength	min. 895MPa	129810 psi
Yield strength	min. 828MPa	120090 psi
Elongation at Break	min.10 %	10 %
Reduction of Area	min.25 %	25 %

About the chemical composition of grade 2 Titanium rolled rings

Element	Weight %
C	≤0.08
O	≤0.25
N	≤0.03
H	≤0.015
Fe	≤0.30
*OEE	≤0.10
*OET	≤0.40
Ti	Remaining

About the mechanical properties of grade 2 Titanium rolled rings

Alloy	UNS Designation	Spec.	Tensile Strength (min.)			Yield Strength 0.2% Offset (min.)			Elongation in 2 inches (min.)	Max Hardness	Modulus of Elasticity (x106 psi)	Mean Coefficient of Thermal Expansion IN./IN./°F x 10-6)	Thermal Conductivity (BTU-in/ft2-h-°F)
			psi	MPa	ksi	psi	MPa	ksi	%
Grade 2 Titanium	R50400	B338	50,000	-345	50	40,000-	(276-448)	40-65	20	-	16	5.1	144
						50,000

About the chemical composition of grade 1 titanium tube

Element	Minimum (weight %)	Maximum (weight %)	Typical (weight %)
Fe		0.2
O		0.18
C		0.08
N		0.03
H		0.015
Ti	Balance

About the mechanical properties of grade 1 Titanium rolled rings

Density
lb/in3	g/cm3
0.163	4.51
Tensile Strength
ksi	MPa
35 min	240 min
Yield Strength
ksi	MPa
20 min	138 min
Hardness
70 HRC max
Elongation
24% min

About the chemical composition of 3Al-2.5V Titanium rolled rings
ElementMinimum (weight %)Maximum (weight %)Typical (weight %)

Al	2.5	3.5
V	2.0	3.0
Fe		0.25
O		0.15
C		0.08
N		0.03
H		0.015
Ti	Balance

Packaging & Shipping
Company Profile

CP GR1 Titanium rolled rings PHYSICAL PROPERTIES
Physical Properties	Metric	English	Comments
Density	4.50 g/cc	0.163 lb/in³
a Lattice Constant	2.95 Å @Temperature 25.0 °C	2.95 Å @Temperature 77.0 °F	alpha phase
	3.29 Å @Temperature 900 °C	3.29 Å @Temperature 1650 °F	beta phase
c Lattice Constant	4.683 Å	4.683 Å @Temperature 77.0 °F	c/a = 1.587
Mechanical Properties	Metric	English	Comments
Hardness, Brinell	120	120	annealed
Hardness, Knoop	132	132	Estimated from Brinell.
Hardness, Rockwell B	70	70	annealed
Hardness, Vickers	122	122	Estimated from Brinell.
Tensile Strength	124 - 138 MPa @Temperature 427 °C	18000 - 20000 psi @Temperature 801 °F
	152 - 179 MPa @Temperature 316 °C	22000 - 26000 psi @Temperature 601 °F
	193 - 207 MPa @Temperature 204 °C	28000 - 30000 psi @Temperature 399 °F
Tensile Strength, Ultimate	240 MPa	34800 psi
Tensile Strength, Yield	170 - 310 MPa	24700 - 45000 psi
	76.0 - 90.0 MPa @Temperature 427 °C	11000 - 13100 psi @Temperature 801 °F	0.2% offset
	83.0 - 103 MPa @Temperature 316 °C	12000 - 14900 psi @Temperature 601 °F	0.2% offset
	110 - 124 MPa @Temperature 204 °C	16000 - 18000 psi @Temperature 399 °F	0.2% offset
Elongation at Break	24%	24%
	25 - 30 % @Temperature 427 °C	25 - 30 % @Temperature 801 °F
	30 - 35 % @Temperature 316 °C	30 - 35 % @Temperature 601 °F
	40 - 50 % @Temperature 204 °C	40 - 50 % @Temperature 399 °F
Reduction of Area	35%	35%
Tensile Modulus	103 GPa	14900 ksi
Compressive Modulus	110 GPa	16000 ksi
Poissons Ratio	0.37	0.37
Shear Modulus	45.0 GPa	6530 ksi
Charpy Impact	310 J	229 ft-lb	V-notch
Impact Test	136 J	100 ft-lb	Impact Strength
Coefficient of Friction, Dynamic	0.68	0.68	Ti sliding on Ti; 300 m/min
	0.8	0.8	Ti sliding on Ti; 40 m/min

CP GR2 Titanium rolled rings PHYSICAL PROPERTIES
Density	Magnetic Permeability
0.163 lbs/in-3	Nonmagnetic
4.51 g/cm-3	Electrical Resistivity
Beta Transus (+/-25°F, +/--3.9°C)	21 µΩ/in
1680°F	0.53 µΩ/m
915°C	Elastic Modulus
Thermal Conductivity	15.2-17.4 Msi
12.60 BTU hr-1ft-1 °F-1	105-120 GPa
21.79 W m-1 °C-1	Typical values at room temperature of about 68-78°F (20-25°C)

GR5 TI6AL4V Titanium rolled rings PHYSICAL PROPERTIES
Physical Properties	Metric	English	Comments
Density	4.43 g/cc	0.16 lb/in³
Mechanical Properties
Hardness, Brinell	334	334	Estimated from Rockwell C.
Hardness, Knoop	363	363	Estimated from Rockwell C.
Hardness, Rockwell C	36	36
Hardness, Vickers	349	349	Estimated from Rockwell C.
Tensile strength	min. 895MPa	129810 psi
Yield strength	min. 828MPa	120090 psi
Elongation at Break	min.10 %	10 %
Reduction of Area	min.25 %	25 %
Modulus of Elasticity	113.8 GPa	16500 ksi
Compressive Yield Strength	970 MPa	141000 psi
Notched Tensile Strength	1450 MPa	210000 psi	Kt (stress concentration factor) = 6.7
Ultimate Bearing Strength	1860 MPa	270000 psi	e/D = 2
Bearing Yield Strength	1480 MPa	215000 psi	e/D = 2
Poisson's Ratio	0.342	0.342
Charpy Impact	17 J	12.5 ft-lb	V-notch
Fatigue Strength	240 MPa	34800 psi	at 1E+7 cycles. Kt (stress concentration factor) = 3.3
Fatigue Strength	510 MPa	74000 psi	Unnotched 10,000,000 Cycles
Fracture Toughness	75 MPa-m½	68.3 ksi-in½
Shear Modulus	44 GPa	6380 ksi
Shear Strength	550 MPa	79800 psi	Ultimate shear strength
Electrical Properties
Electrical Resistivity	0.000178 ohm-cm	0.000178 ohm-cm
Magnetic Permeability	1.00005	1.00005	at 1.6kA/m
Magnetic Susceptibility	3.30E-06	3.30E-06	cgs/g
Thermal Properties
CTE, linear 20°C	8.6 µm/m-°C	4.78 µin/in-°F	20-100ºC
CTE, linear 250°C	9.2 µm/m-°C	5.11 µin/in-°F	Average over the range 20-315ºC
CTE, linear 500°C	9.7 µm/m-°C	5.39 µin/in-°F	Average over the range 20-650ºC
Specific Heat Capacity	0.5263 J/g-°C	0.126 BTU/lb-°F
Thermal Conductivity	6.7 W/m-K	46.5 BTU-in/hr-ft²-°F
Melting Point	1604 - 1660 °C	2920 - 3020 °F
Solidus	1604 °C	2920 °F
Liquidus	1660 °C	3020 °F
Beta Transus	980 °C	1800 °F

Certifications
