US$30,000.00-50,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Automatic Grade
Semiautomatic
Max. Cutting Length
3800mm
Max. Cutting Width (Depth)
3800mm
Max. Cutting Height
100mm
Max. Gripper Opening
105 mm
Max. Sawblade Projection
105 mm
Main Sawblade Motor
15HP (11.2kw)
Main Sawblade Diameter
405 mm
Scoring Sawblade Speed
6, 800 r.p.m.
Saw Carriage Drive Motor
2HP (1.5kw)(Inverter)
Forward Speed(Adjustable)
0~45 M/Min
Transport Package
Wooden Package
Production Capacity
100sets/Month
Product Description
Parameters
| MODEL | SS-3800 |
| CAPACITY | Max. cutting length | 3800 mm |
| Max. cutting width (depth) | 3800 mm |
| Max. cutting height | 100 mm |
| Max. gripper opening | 105 mm |
| Max. sawblade projection | 105 mm |
| MAIN SAWBLADE | Main sawblade motor | 15HP (11.2KW) |
| Main sawblade diameter | Ø405 mm |
| Spindle diameter | Ø 1"or Ø30mm |
| Main sawblade speed | 4,800 R.P.M. |
| SCORING SAWBLADE | Scoring sawblade diameter | Ø176 mm |
| Spindle diameter | Ø 1"or Ø30mm |
| Scoring sawblade speed | 6,800 R.P.M. |
| SAW CARRIAGE | Saw carriage drive motor | 2HP (1.5KW)(Inverter) |
| Forward Speed(adjustable) | 0~45 M/min |
| Return Speed | 70 M/min |
| PUSHER | Pusher system drive motor | 1KW |
| Pusher system pull speed | 5~70 M/min |
| Pusher system push speed | 5~60 M/min |
| OTHERS | High pressure blower motor | 3HP (2.2KW) |
| Side aligner motor | 90W |
| Working air pressure | 5~6 kg/cm2 |
| Table height from floor | 880 mm |

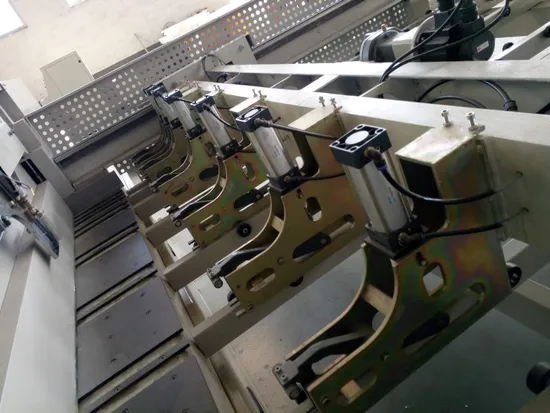

| Grippers | 9 units |
| Floating table | 3 units |
| Voltage | 220V | 380V | 415V | 440V | 575V |
| Hertz | 50HZ/60HZ |
| | Net weight | 4700kg |
| Gross weight | 5300Kg |
advantageous features
1.Computer control and high precision accuracy, more than one board, many specifications,
automatic sawing.
2.Ordinary workers can greatly reduce labor costs and management costs
3.Low price high standard adopts famous brand components, after-sale guaranteed throughout the country
4.production efficiency raise greatly
Should you have any need of the machine , please feel free to contact with me
>>
