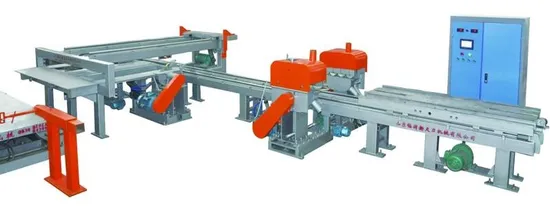

Heavy Model 4 Side Trimming Saw Machine with High Precision

Product Description

Heavy Model 4 Side Trimming Saw Machine with High Precision Product Application: This product is suitable for plywood board, cutting edge technology is manual cutting to a great leap forward of automatic cutting,compared with ordinary hand saws, the machine has five features: precision, high efficiency, energy saving, provincial industry and environmental protection.
The machine adopts PLC intelligent design, saw blade speed can be adjusted automatically according to cutting condition,no need to stop any saw blades,at the same time realize the automation of stacking and leftover material removal, safe and convenient operation, smooth running, low noise.
Its high quality automatic saw cut, board face is smooth, no dozen edge, coastal zone size standards.
Highlight the native: intelligent cutting, smooth running safe, accurate and efficient.
Technical parameters:

Model	ABC3215-II
Working dimension	2440x1220mm
Diameter of saw blades	Ф250-Ф315mm
Working thickness	3-50mm
Rotary speed of the main saw blades	6500-7000r/pm
Overall dimension	8500x5500x1020mm
Machine weight	7200Kgs
Total motor power	43Kw
Remark	Include the automatic stacking system with lifting table and 4Pcs saw blades

Details show:
High Precision Wear-Resistance Guide Bar

Electrical control cabinet all use the international brand: Omron, Schneider, Delta PLC...
Saw waste automatic remover device
Automatic Pre-Loader Device, save the working time, continuous working.
You May be Concerned...
? Is there English User Manual?
Yes, we have English Manual and Video to show you how to operate the machine
? How about Warranty?
All of our machines have 1 Year Warranty. We offer free spare parts during warranty time.
? Will you offer After-sales Service?
Yes, we have Experienced After-sales Service Team which can Communicate in English to help you solve the problems.
? How you Fix the Machine if there is problem?
We offer Photo and Video Technical Support. If necessary, we can send technician abroad.

---
