Basic Info.
Spindle
Hqd 9.0kw Atc Air-Cooled ISO30-Er32 Spindle
Inverter
Folinn11kw Inverter
Motor
750W AC Servo Motor and Driver
Reduce
Japanese Shimpo Planetary Reducer
Control System
Shanlong L68 Control System
Working Table
Vacuum Table with T-Slot
Rail
Tbi 25mm Square Guide Rail
Machine Voltage
AC380V/50/60Hz
Transport Package
Wooden Package
Specification
1300*2500mm
Origin
Jinan City, Shandong Province, China
Product Description

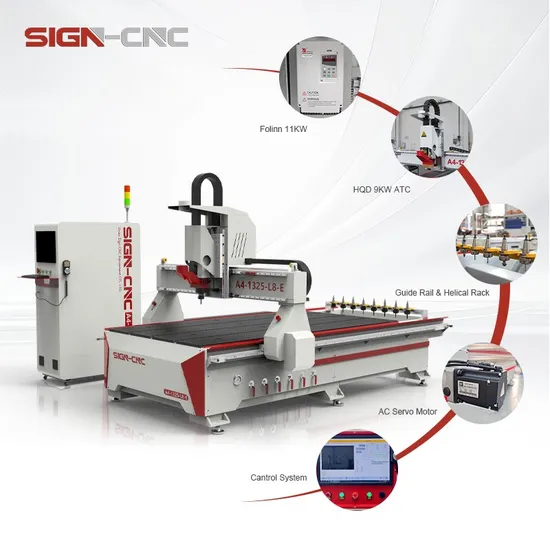

High Speed Router SIGN A4-1325-L8 Easy servo ATC Woodworking Center CNC Router machine for sale
| |
Detailed Photos
Product Parameters
Model
| A4-1325-L8-E
|
Working area
| 1300*2500mm
|
Z feeding
| 300mm
|
Frame structure
| Steel casting-welding
|
Type of table cover
| Vacuum table with T-slot
|
Vacuum pump
| 7.5kw air cooling
|
Z axis transmission
| Ball screw and 25mm square guide rails
|
X Y axis transmission
| 25mm square guide rails + Helical rack
|
Max. Rapid Travel Rate
| 45000mm/min
|
Max. Working Speed
| 30000mm/min
|
Command Code
| G code * .u00 * .mmg * .plt
|
Operating voltage
| AC 380V/50Hz
|
Spindle power
| HQD 9.0KW ATC air-cooled ISO30-ER32 spindle
|
Tool Magazine
| 8 - 12 pc tools
|
Type of cooling
| Air cooling
|
Spindle Speeds
| 0-24000rpm/min
|
| Reducer | Japanese Shimpo planetary reducer |
Drive motor type
| AC servo motor and driver
|
operating system
| ShanLong L68 control system
|
Dust Collector
| 3kw with double bags
|
Lubrication system
| Automatic
|
Supported software
| Artcam with post processor
|
Operating conditions
| Humidity: 30% -75%, temperature: 15 - 45 degree
|
Warranty
| Two year
|
Application and Sample
Mainly used in woodworking industry, advertising industry, craft industry, mold industry, electronics industry, construction industry, printing and packaging industry , Decoration industry, tombstone industry, crystal product industry and other
Packaging & Shipping
Certifications
Company Profile
FAQ
Q1:What about your after-sales service
A1: Two years warranty for machine and 24 hours technical support by call, email, skype, whatsapp, wechat and so on. If you have any question about machine and use, can contact with us, we will give you a solution or send to you video for how to do.
>>
