Integrated Design Cement Plant Production Line Support Roller Wheel Device Rotary Kiln

Product Description

Product Description

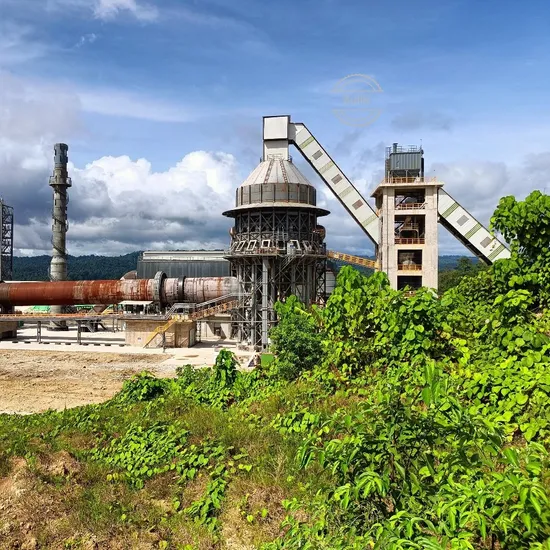

Rotary kiln refers to a rotating calcining kiln, which belongs to the category of building materials equipment. Rotary kilns can be divided into cement kilns, metallurgical chemical kilns and lime kilns according to different processed materials.
Cement kilns are mainly used for calcining cement clinker and are divided into two categories: dry production cement kilns and wet production cement kilns. The metallurgical chemical kiln is mainly used in the metallurgical industry for magnetization and roasting of lean iron ore in steel plants; oxidation roasting of chromium and nickel iron ore; high-alumina bauxite roasting in refractory materials plants and aluminum hydroxide roasting of clinker in aluminum plants. Chemical plants use rotary kilns to roast chromium ore and chromium ore powder and other similar minerals. Lime rotary kiln is used for roasting activated lime and light burnt dolomite used in steel plants and ferroalloy plants.
Product Parameters

Basic Parameters
Product Name	Rotary Kiln
Mode	Φ1x15m-Φ6.0x90m
Capacity	100-1200 tpd
Fuel	Natural Gas, Coal, Natural gas, coal, gas, biomass pellets, heavy oil, etc.

Main Technical Specifications
Model	Diameter/m	Length/m	Slope/%	Capacity(t/d)	Rotating Speed	Motor Powder/kw
Φ2.5x40m	2.5	40	3.6	180	0.44-2.44	55
Φ2.5x50m	2.5	50	3.0	200	0.62-1.86	55
Φ2.5x54m	2.5	54	3.5	280	0.48-1.45	55
Φ2.7x42m	2.7	42	3.5	320	0.10-1.52	55
Φ2.8x44m	2.8	44	3.5	450	0.437-2.18	55
Φ3.0x45m	3.0	45	3.5	500	0.5-2.47	75
Φ3.0x48m	3.0	48	3.5	700	0.6-3.48	100
Φ3.0x60m	3.0	60	3.5	800	0.3-2.0	100
Φ3.2x50m	3.5	50	4.0	1000	0.6-3.0	125
Φ3.3x52m	3.3	52	3.5	1300	0.266-2.66	125
Φ3.5x54m	3.5	54	3.5	1500	0.55-3.4	220
Φ3.6x70m	3.6	70	3.5	1800	0.25-1.25	125
Φ4.0x56m	4.0	56	4.0	2300	0.41-4.07	315
Φ4.0x60m	4.0	60	3.5	2500	0.396-3.96	315
Φ4.2x60m	4.2	60	4.0	2750	0.41-4.07	375
Φ4.3x60m	4.3	60	3.5	3200	0.396-3.96	375
Φ4.5x66m	4.5	66	3.5	4000	0.41-4.1	560
Φ4.7x74m	4.7	74	4.0	4500	0.35-4.0	630
Φ4.8x74m	4.8	74	4.0	5000	0.396-3.96	630
Φ5.0x74m	5.0	74	4.0	6000	0.35-4.0	710
Φ5.6x87m	5.6	87	4.0	8000	Max 4.23	800
Φ6.0x95m	6.0	95	4.0	10000	Max 5.0	950*2

Process Flow Chart
Product Advantages

Product Advantages	The rotation speed is flexible, and the transmission device makes the cylinder rotate at the required speed through the ring gear located in the middle of the cylinder;
	Easy installation and maintenance. Larger kilns are equipped with an auxiliary transmission device that allows the cylinder to rotate at a very low speed to meet the needs of installation and maintenance.

Main Products
Company Profile
Shandong Bullis Metallurgical Engineering Co., Ltd. is a subsidiary of Heze Shuanglong Metallurgical Machinery Group and is located in Shandong Province, China. Shuanglong Group is a leading large-scale industrial intelligent equipment manufacturing enterprise. It has a registered capital of 111.1 million yuan, more than 200,000 square meters of factory area, and more than 420 employees. The company's main business include equipment manufacturing, production line design, R&D, manufacturing, commissioning, operation and other engineering general contracting. The business segment involves metallurgy, building materials, chemical industry, environmental protection, new energy and other fields, providing customers with one-stop equipment and engineering overall solutions.

Our advantages	30+ Years' Experience
	420+ Employees
	3000+ Successful Cases
	200000 m2 Factory
	One-stop solutions provider for metallurgical engineering

Certifications
Our Exhibitions&Partners
Packaging & Shipping

Shipping Time	1-6 months
MOQ	1 Set
Shipping Port	Qingdao/Tianjin/Shanghai/Liaoning/Guangzhou

Services
1.Engineering Consulting and Design
We have a professional and experienced team of engineers who can provide customers with early consultation and design services and tailor-made efficient and energy-saving metallurgical process design to ensure the smoothness of production and the stability of product quality.
2.Customized Solutions
Bullis is able to provide personalized metallurgical engineering solutions based on customers' specific needs and site conditions.
3.Equipment Supply and Installation
Bullis has strong metallurgical equipment processing capabilities and a professional installation team to ensure that the equipment can be installed accurately and put into use quickly.
4.Project Management and Implementation
With many years of project management experience, he can effectively coordinate the resources of all parties, advance the project in strict accordance with the scheduled time and budget, and ensure that the project is delivered on time and the quality meets or exceeds industry standards. "
5.After-sales and Maintenance Services
No matter when and where our customers need, our after-sales service team will respond quickly to solve their problems. Provide regular equipment maintenance services and operator training to ensure your production is always in top condition.

---
