Reliable 230V Fuel Dispenser for Gas Stations and Fleet Services

Product Description

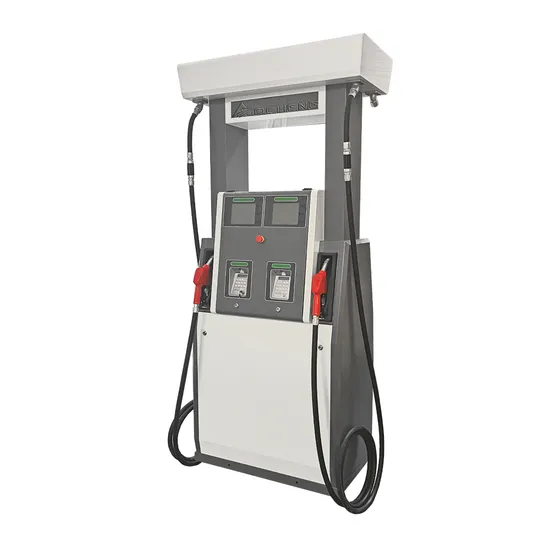

The AC-210 Big Fuel Dispenser operates on 220V, delivering 10-60L/min with ±0.5% accuracy. Suitable for diesel, HVO, XTL, gasoline, and kerosene, it features two motors, automatic nozzles, and a digital display. Its anti-explosion design makes it ideal for various commercial and industrial applications.
2 x Product
2 x Motor 220V, 50Hz, 0.75kw
2 x Tatsuno type gear pump
4 x Tatsuno type flowmeter
4 x Auto fuel nozzle, 11A, 3/4''
4 x Black rubber hose, length: 4m with couplings
4x Solenoid valve
4 x Breakaway valve
4 x Hose swivels
4 x Totalizer
4 x Electronic controller
4 x Preset keyboard, metal material
4 x Display
All painting body
Package: Standard export carton
Specifications:

Connection	Liquid line	1'', 20kgf/cm2, flange
	Gas line	1/2'', 20kgf/cm2, flange
	Blow line	1/2'', 20kgf/cm2, flange
Pressure property	Max. Operating Pressure	18kgf/cm2
	Airtightness test pressure	20kgf/cm2
	Resisting test pressure	30kgf/cm2
Flow meter	Construction	4-piston type
	Outlet diameter	3/4''
	MPE	±0.5%
	Flow Range	10-60L/min
Temperature	Type	Electronic
	Operating temp	-40 C - +50C
	Reference temp	15 C
Display	Sales amount	1-999999.99
	Volume	0.01-999999.99 Liter
	Unite Price	1-9999.99
Preset	Provided	Price volume and accumulated sales
Self diagnosis	Provided	Self diagnosis function, etc
Power source	Electrical	Single Phase, AC220V 50/60Hz
	Input range	-0.6
Safety valve	Separating pressure	30kgf/cm2
	Operating Load	60kgf/cm2
Others	Anti-explosion	Resisting pressure anti-explosion
	Excess flow valve	Provided
	Quick-coupling	Provided
	Strainer	Provided
	POS interface	ALI29
	Hose hook	Provided
Pressure Gauge	Pressure range	0-40kgf/cm2

---
