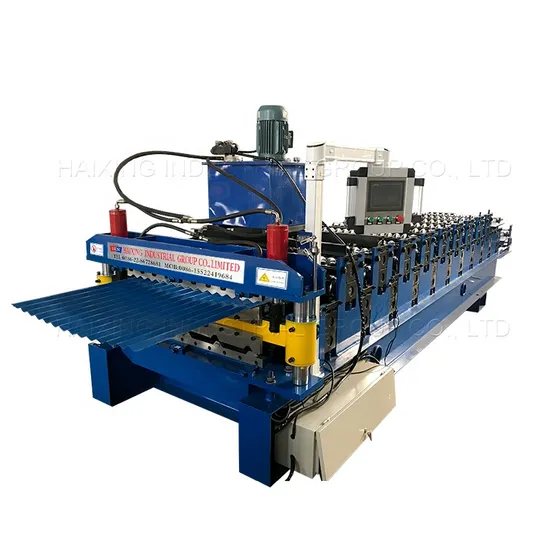

Metal Aluminum Roof Tile Wall Panel Roll Forming Machine

Product Description

Metal Aluminum Roof Tile Wall Panel Roll Forming Machine Technical parameters:
1	Cutting&Hydraulic type	Cut slide/ Double guide pillar
2	Hydraulic motor power	3kw-7.5kw
3	Cutting drive	Decelerating motor + Chain drive gear all by high-frequency
4	Length measurement	Encoder
5	Control System	Panasonic /Siemens / Schneider / Delta PLC
6	Chain Size	1inch/2inch
7	Main Frame	300mm/350mm H-Beam or 350mm
8	Backboard Thickness	17mm/200mm
9	Feeding Material	Better as your drawing or from our designer
10	Feeding Thickness	0.18mm-0.8mm
11	Effective width	Better as your drawing or from our designer
12	Productivity	8-12/min
13	Roll Station	14rows(according to different design)
14	Roller Diameter	70mm/75mm(depend on different design)
15	Roller material	45# steel
16	Cutter material	Cr12 mould steel heat-treated hardness of HRC = 60-62 degrees
17	Overall Size	Size of our designer
18	Total Weight	2t-12t

Products showing
Decoiler-----feeding----- leveling ----- cutting -----roll forming ----- punching ----- output table

Packaging & Shipping
1. roll forming machine and uncoiler are nude packing (If you need, we can also packed it with water-proof plastic)
2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box.
3.One set of machine needs a 40' container to shipping.
Our Services

1. Warranty :One year,and we will provide technical support for whole life of the equipment.
2. Delivery time: Within 35 days after deposit receipt your payment
3. Guarantee period: 18months free service/ pay service all the machine life
4. Installation and training
If buyers visit our factory and check the machine, we will teach you how to install and use the machine and also train your workers/technician face to face.


FAQ

WHY CHOOSE HAIXING INDUSTRIAL GROUP CO.,LIMITED
1) Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.
2)Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly
3)Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit
We are Gold supplier with BV assessment and CE certificate.
4)Q: What can you do if the machine broken?
A: Our machine's warranty period is 18months,if the broken parts can't repair
we can send the new parts replace the broken parts free,but you need pay the express cost yourself if after warranty period ,we can through negotiation for to solve the problems,and we supply the technical support for the whole life of the equipment.
5) Q: Can you be responsible for transport?
A: Yes,please tell me the destination port or address we have rich experience in transport.
Company Information

Tianjin Haixing Imp&Exp company are specializing in the production of all kinds of Aluzinc rib roofing sheet roll forming machine,glazed roof making machine, double roof making machine, floor deck machine,curve roof machine,ridge cap roof forming machine, different sizes roofing sheet, PPGI/ GI,Alu-Zinc steel coils ,Galvanized steel coils, Galvanized steel sheet,Galvalume steel coils/sheet, cold/ hot rolled sheet/coils,professional service and favorable price, satisfied with the quality,welcome to every customers come to visit and buy !
