New Industrial Wood Chipper Wood Chips Making Machine/Wood Chipper Shredder

Product Description

NEW GENERATION WOOD CHIPPER WITH HIGH QUALITY

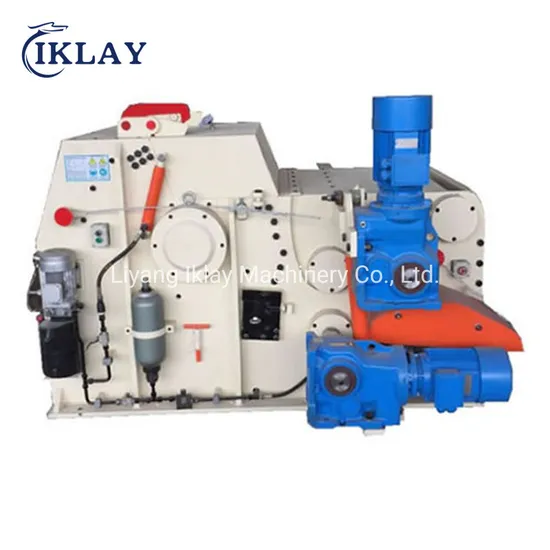

The drum chipper/ wood chipper is mainly composed of a machine base assembly, a knife roller assembly, a feeding roller assembly, a conveying device, a hydraulic system, an electrical control system, etc. It has the advantages of firm structure, stable performance, and easy operation. The feeding method is suitable for cutting all kinds of wood, bamboo, wood pallets, building plates and other non-fiber stems.
The drum chipper can cut raw materials such as branches, veneers, waste veneers, bamboo, cotton stalks into sheets of certain specifications, which are used as the basic raw materials for the manufacture of particleboard, fiberboard, non-wood wood-based panels and pulp and paper. Used in various particleboard mills, fiberboard mills, paper mills, biomass pellets plants, biomass power plants and wood chip mills, etc.
1. Technical Parameter

Model	BX216	BX218	BX218D	BX218-11	BX2110A	BX2110B
Diameter of cutters' roller(MM)	650	800	800	800	1000	1000
Feeding size(HXW)	180X500	225X680	240X750	240X1050	330X750	330X850
Quantity of fly-cutters(PCS)	2	2	2	3X2	2	2X2
Speed of cutters' roller(RPM)	590	650	650	650	550	550
Feeding speed(M/MIN)	37	38	38	39	37	37
Max diameter of logs(MM)	120	160	160	for board	170	185
Capacity(M³/H)	10	22	38	30	55	62
Chips size(MM)	30	30	30	20	33	33
Main motor power(KW)	55	110	132	160	160	185
Feeding roller power(KW)	3X2	4X2	4X2	5.5X2	7.5X2	7.5X2
Pump power(KW)	1.5	1.5	1.5	1.5	2.2	2.2
Model	BX2110	BX2113A	BX2113B	BX2113-11	BX2113-13	BX2116
Diameter of cutters' roller(MM)	1000	1300	1300	1300	1300	1600
Feeding size(HXW)	330X1050	400X700	400X850	400X1050	400X1250	600X1250
Quantity of fly-cutters(PCS)	2X2	3	3X2	3X2	4X2	4X2
Speed of cutters' roller(RPM)	550	420	420	442	340	350
Feeding speed(M/MIN)	37	38	38	43	42	42
Max diameter of logs(MM)	200	230	240	250	250	310
Capacity(M³/H)	77	64	78	108	126	180
Chips size(MM)	33	30	30	32	32	30
Main motor power(KW)	220-250	200-250	250	315	450	710(10KV)
Feeding roller power(KW)	7.5X2	7.5X2	7.5X2	11X2	15X2	18.5X2
Pump power(KW)	2.2	3	2.2	2.2	3	4

2. Features 2.1.The engine of wood chipper, welded by high strength sheet metal, is the support foundation for the whole machine.

2.2.Dead-knife seat support welded with the engine base is used to put the knife seats.

2.3.The pressed block fasten the dead knife in the knife seats by specialized in manufacturing of high strength bolts.

2.4.The knife base is fixed in the engine base by clamp which can pass through the hole of side wall of base free.

2.5.The chips can fall down through the screen and discharge the bottom of engine base.

2.6.Oversized wood chips can be broken by grinding rod installed in the engine base.
3. Photos of wood chipper/ wood chipping

4. Details for our process and materials
4.1. Upper and Lower Feeding Rollers inside can be changed easily, fixed by high strength screws.
4.2. Belt pulley uses upgraded steel material, more durability.
4.3. All steel materials are cut by CNC laser machine, thickness is 25mm, Q345B material, more durable.
4.4. Motors and reducers use top brands. Spiral bevel gear reducer has long service life and relatively high price.
4.5. Rotor uses dynamic balance testing to ensure safety and stability. Chipper Knives use premium quality steels for optimizing performance, enhancing the abrasion resistance and prolong the service life.
5. Delivery
We have exported many wood chippers to Thailand, Malaysia, Vietnam, Indonesia, Chile and so on.

---
