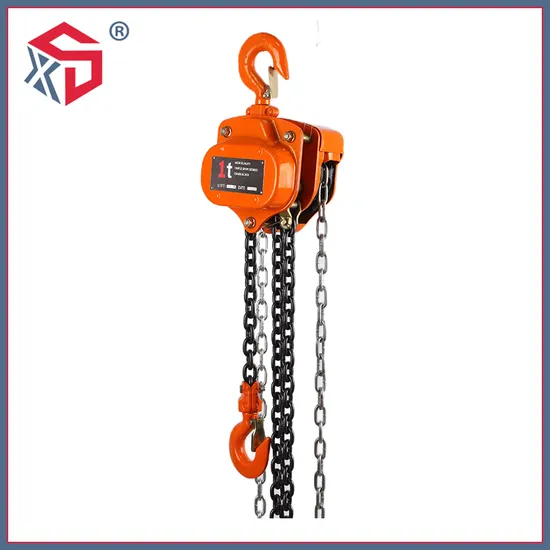

1ton 1000kg Vt Type Manual Chain Hoist Hand Chain Block

Product Description

Product Parameters

MODEL	ACTUAL LOAD(T)	NO.OF LOAD CHAIN	DIA OF CHAIN(MM)
1T	1.25	1	6
2T	2.5	1	8
2T	2.5	2	6
3T	3.75	1	10
3T	3.75	2	8
7.5T	9.375	3	10
10T	12.5	4	10
15T	18.75	6	10
20T	25	8	10
30T	37.5	12	10
50T	62.5	20	10

Product Description

Widely used in factories,mining,constructions,farms,wharf,dock,and warehouse,etc.
Self-manufactured superior G 80 load chain,DIN standard Drop-forged and heat treated load hooks with safety latchs and hook holds.Double pawls brake system,Non-Asbestos brake discs,High grade sealed roller bearings. 100% Running load test at 1.5 times of rated capacity.The static load test is 4 times of rated capacity.More than 1500 cycles of fatigue test at 1.5 times of work load.Overload limiter can be adopted at your request.OEM service can be provided
Detailed Photos
Certifications
Packaging & Shipping
Company Profile
FAQ
Q1. What's information should I provide to get the price?A:1. Chain quality? 2.the chain size? 3. the working voltage? 4. the machine frequency?Q2. What's the lead time for regular order?A: The normal delivery time is 7-30 days. If you have special needs or if the quantity is greater than 1 set, please explainwhen making an inquiry. When we quote, we will provide you with accurate delivery time according to the actual situation.Q3. The space of my workshop is limited, can the machine is ok for me?A: According to your needs, our designers will tailor-made products suitable for your use.Q4.Can you provide lifting tools?A: Yes, we can provide any type of lifting tools such as Manual chain hoists, manual lever chain hoist, electric chainshoists,chains, slings, hooks, electromagnetics, grabs, beams, etc.non-standard fixtures, etc... Welcome to consultQ5. Is it OK to print my logo on the product?A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.Q6. Are there any professional technicians to assist our installation?A: Yes. We have a professional installation team, who has already been to many countries to assist the installation. If you need our technicians to offer this service, please let us know in advance. So that we can arrange the suitable technicians to your country.Q7. How do you ship the goods and how long does it take to arrive?A: Small products can be transported by air, and large products can be transported by sea. According to different countries and regions, the specific time will be confirmed according to the actual situation.Q8. What is your terms of payment?A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment. We'll show you the photos or videos of the products and packages before you pay the balance.Q9. What is your terms of packing?A: Generally, we pack our goods in neutral wooden boxes. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters. There is no package of big machines,there are just protective covers.Q10. Do you test all your goods before delivery?A: Yes, we have 100% test before deliveryQ11. How to proceed an order for hoist?A: Firstly let us know your requirements or application:Hoists capacity, chains length and others? Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.Q12. Do you offer guarantee for the products?A: Yes, we offer 1-3 years warranty to our products.

---
