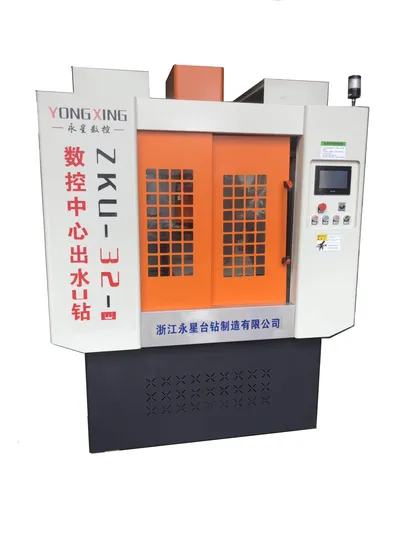

Yongxing Numerical Control Series Zku-32-3 Automatic CNC Drilling Machine for Metal

Product Description

Detailed Photos

Product Description
CNC drilling is a machining process that utilizes a rotating cutting tool to produce round holes in a stationary workpiece. The holes are typically made to accommodate machine screws or bolts for assembly purposes. Our ZKU-32-3 drilling machine is your best choise.

The drilling and Milling Machine advantage : 1.Three axis hardened treatment, high rigidity. 2.vertical horizontal multi-functional ,drilling ,milling, boring operation. 3.X axis mechanical feed,Y.Z axis can be added the device 4.Gear transmission milling head, stable transmission, compact structure ,easy maintenance, easy to operate The main feature: 1.Uses standardized assemblies from the VH milling machine universal use as milling machines and drill press 2.Easily shiftable gear drive ensures power transmission without losses 3.With V-belt spindle drive and gear spindle drive 4.Head swivels into the horizontal level on both sided via crank and toothed gear, easy activation of manual micro-feed for the spindle quill
Application

Model	ZKU-32-3
Max.drilling capacity	40mm
Max. Tapping diameter	M28
Spindle taper	BT40
Spindle stroke	180mm
Spindle center to column surface	360mm
Spindle nose to worktable	600mm
Spindle nose to base	1215mm
Spindle speeds range (12steps)	42~2050rpm
Speed power feed range (4steps)	0.07/0.15/0.26/0.4mm/r
Diameter of column	160mm
Worktable size	370x500mm
Base size	460x450mm
Width of T-slot	2-14mm
Main motor	2.2/2.8kw (double speed)
Packing size	2200x700x1150
G.W	1400kg
