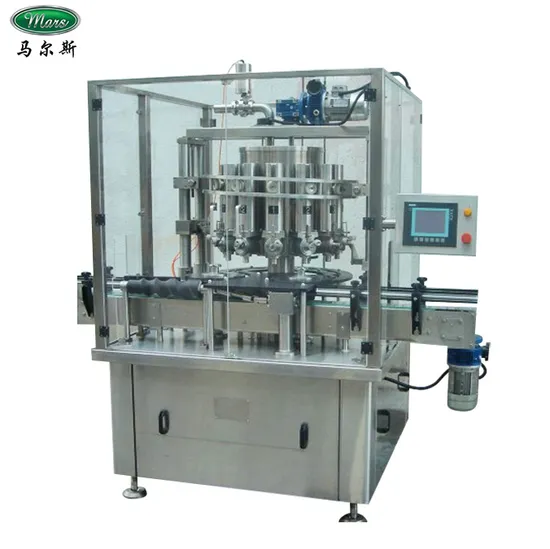

Glass Bottle Ketchup Filling Twist off Capping Machine (NJG-12)

Product Description

Glass Bottle Ketchup Filling Capping Machine (NJG-12)
1. Tomatosauce, butter, catup, sesame paste, Ketchup filling machine
2. Three or four twist-off cap
3. Glass bottle
4. Piston filling
The machine has precise filling way which adopts piston type. It is applicable to three or four twist-off cap glass bottle. And it has the ability to MID-temperature filling pop can. Which can be applicable to tea, juice, beverage, capsicum catsup, sesame paste, ketchup and butter etc.
The capacity is from 3000BPH to 18000BPH.
Technical Specifications:

Model	NGF12-4
Production capacity	2,000-3,000B/H(basis on 500ml bottle)
Filling heads	12
Capping heads	4
Filling style	piston filling
Filling precision	≤±2gram(500gram)
Filling temperature	0-90ºC
Suitable bottle diameter	φ50-φ100mm
Suitable bottle height	150-340mm
Suitable cap type	plastic screw cap
Gas source pressure	0.4Mpa
Gas consumption	0.3m3/min
Total power	2.94Kw
Overall dimension	2000×1800×2200mm
Total weight	2500Kg

---
